Item #: LUM310DOMABL
MSRP: No Retail

Luma Surveillance™ 310 Series Dome Analog Camera



The Luma 310-series dome cameras feature the brightest and clearest Starlight images in our lineup for improved nighttime picture quality. 2MP resolution provides 1080p clarity over analog, and your customers will be able to see clearly at all times with up to 20 meters of IR Night Vision. The motorized varifocal lens allows for a safer installation, and we offer the housing in white or black, so it will blend in where it’s needed.


Key Features


Easy Installation

Once the camera is properly aimed, you don’t have to worry about adjusting the focus from the ladder. The motorized varifocal lens can adjust the zoom and focus right from your computer or DVR, making installation a breeze.

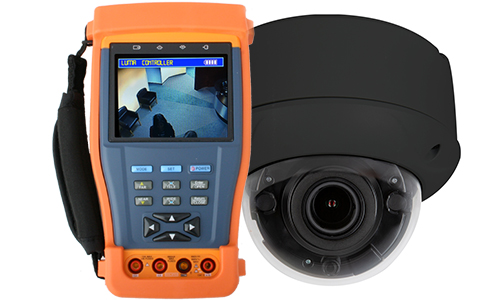

Video & Power Test Ports

With a CCTV tester, you can see what the camera sees. This feature allows you to adjust the aim of the camera easily, getting you off the ladder as quickly as possible.


IR up to 65’

This camera’s powerful IR lights up even the darkest night. With up to 20 meters or 65 feet of IR, it eliminates overexposure in dim settings and illuminates the subject, making sure your customers don’t miss a thing.


Optimize OSD After Dark

Need to fine-tune OSD settings after dark, but don’t want to roll a truck? Just log in remotely to the DVR. Our recorders feature built-in control thanks to HD-TVI technology.



Custom Settings for Day or Night

Set the optimal custom levels for any time of day.


Wide Dynamic Range

WDR, or Wide Dynamic Range, autocorrects images taken in inconsistent lighting and balances them into a clear picture.


Dual Voltage

In addition to 12VCD, this camera also supports 24VAC power, so you can easily run your power cables over a longer distance.


Weatherproof IP 66 Rating

We build our camera housing so that it can withstand the elements. You can rest assured that a strong storm or heavy rains will not impact the camera’s performance.


  CE / FCC / UL
Dimensions (W x H x D)
  Φ 145.2 mm × 124.1 mm
Power Consumption
  Max. 7W
Aspect Ratio
Backlight Compensation
IR Range
Mirror Mode
Sense-Up (Elec. Shutter)
Smart IR
Weather Rating
Port Desc.
  Local Power Test Port: No
Local Video Test Port: Yes
IR Wavelength
Field of View
  Horizontal: 103°-32°
  Power 12 VDC Support: Yes
Power 24 VAC Support: Yes
IR Auto Switch
Image Sensor
  2MP (1920 x 1080 resolution)
  2.8 mm to 12 mm motorized vari-focal lens
Minimum Illumination
  Color: 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
  True WDR
Operating Temperature
  -22 to +140°



The future of surveillance has arrived.

Learn More About Luma

5-Year Limited Warranty

Luma Surveillance™ Analog cameras have a 5-Year Limited Warranty. The warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, disassembled, or improperly installed. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization number (RA).
