SM-VM-ART1-IW-M | Strong™ VersaMount™ Single-Arm In-Wall Articulating Mount

Strong® VersaMount™ Single-Arm In-Wall Articulating Mount



The VersaMount is Strong's best and most versatile mount yet, setting a new standard in low-profile articulation. With the ability to position TVs from flush to 16” off the wall, these mounts are our most premium and versatile mounts to date. It features up to 5” of vertical post-install height adjustment and 11 degrees of roll adjustment with precision TorcMotion technology.



It also combines the convenience of an integrated VersaBox for cleaner and sleeker installs. For a premium, precision-engineered install, look no further than the Strong VersaMount.



VersaMount showing WattBox installed

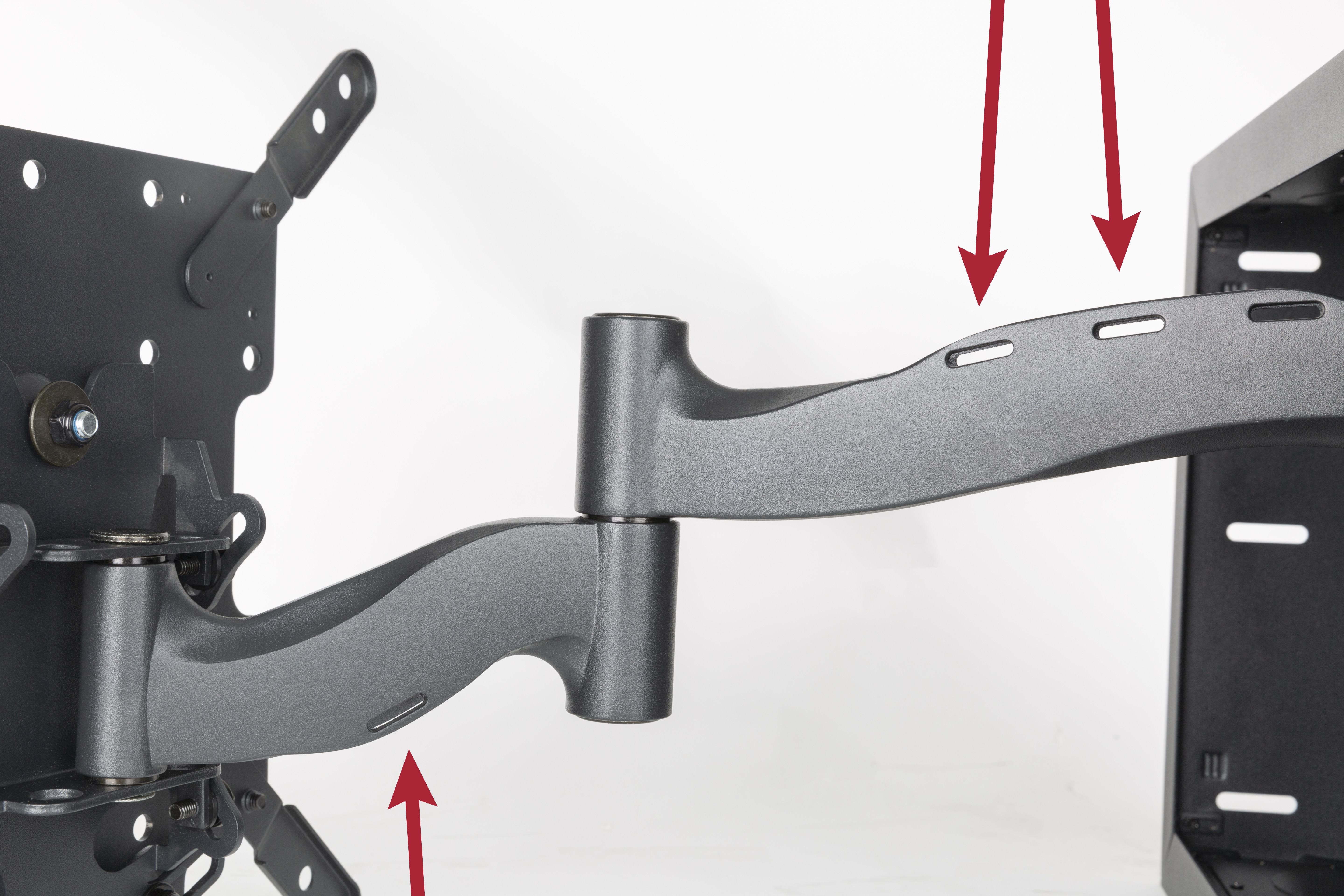

Arrows pointing to where wires will be in mount



Angled views of VersaMount



  SM-VM-ART1-IW-M SM-VM-ART1-IW-16-L
Maximum TV Size
55"
80"
Minimum TV Size
24"
40"
Weight
Capacity: 50 lb
Capacity: 100 lb
Tilt
+19° / -3°
+19° / -3°
Roll
+10° / -10°
+10° / -10°
Swivel
Pan/Swivel Range: 180°
Pan/Swivel Range: 180°
Post Install Height Adjustment
2"
5"
Distance Extended
16"
16"
Distance Retracted
0.5"
0.5"
VESA Mounting Pattern 75x75, 100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300
75x75, 100x100, 100x200, 200x100, 200x200, 200x300, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400
Certifications
cULus, RoHs
cULus, RoHs







Prop 65WARNING: This product contains chemicals including Styrene which is known to the state of California to cause cancer, and Bisphenol A (BPA), which is known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
