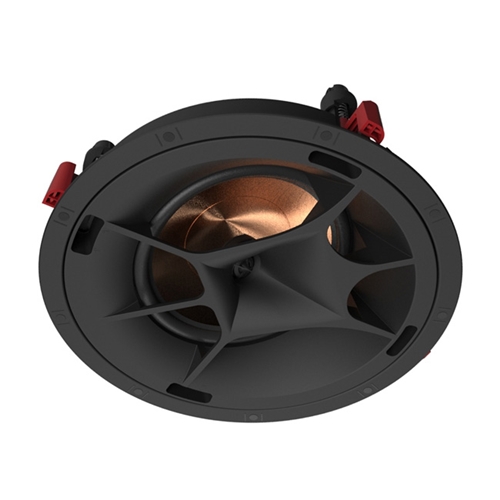

PRO-180RPC LCR
Using the same acoustic components and horn material as the highly acclaimed Reference Premiere box speaker line, the Professional Reference Premiere Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Reference Premiere series. With a 45°angled 8” Cerametallic woofer and a 1” Titanium Dome Tweeter mated to an FEA optimized Tractrix® horn, the Pro-180RPC LCR brings incredible versatility and dynamic, powerful Reference Premiere sound to your home theater system.
PRO-180RPC LCR Spec Sheet
Features:
- 45° angled 8" Cerametallic Woofer
- 45° angled 1" Titanium Dome Tweeter mated to a FEA optimized Tractrix® Horn
- Exclusive, modular SecureFit™ Installation System
- Round and square paintable, bezel-free magnetic grilles included
| Frequency Range |
52Hz - 23kHz +/- 3dB |
| High Frequency Driver |
1" (2.54cm) Titanium Dome Tweeter mated to a FEA optimized square Tractrix® Horn, Angled 45° |
| Low Frequency Driver |
8" (16.51cm) Cerametallic Woofer, Angled 45° |
| Sensitivity |
96 dB @ 2.83V / 1m |
| Coverage Angle |
90° x 90° |
| Power Handling |
50W RMS / 200W Peak |
| Impedance |
8 Ohm Compatible |
| Enclosure Type |
ABS/Infinite Baffle |
| Finish |
Black Baffle/Frame, White Paintable Grille |
| Product Dimensions |
15.25” W x 15.25” H x 5.45” D (38.7cm H x 38.7cm W x 13.8cm D) |
| Mounting |
5.68" (14.4cm) |
| Cutout Dimensions |
11.57" (29.4cm) |
| Product Weight |
8.4lbs (3.8kg) |
| Included |
Round Grille, Square Grille, Paint Shield |
| Installation Kit |
IK-810-C (Sold Separately) |
