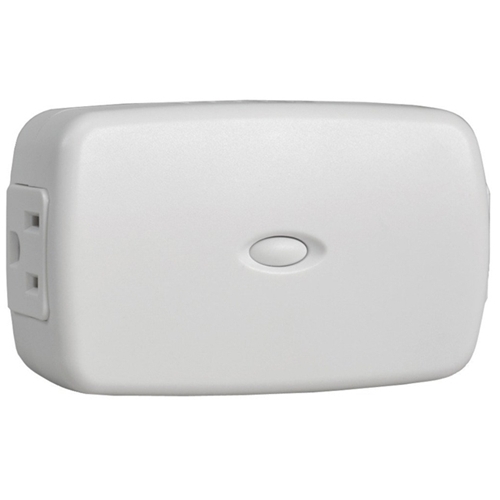

Linear PD300Z-2 - Z-Wave Plug-in Dimmer Module
The Linear PD300Z-2 Plug-in Lamp Module is designed to provide Z-Wave control to a connected dimmable lamp. The PD300Z-2 module is plugged into any standard grounded AC wall outlet, and the lamp is then plugged into the module.
Description
The Linear PD300Z-2 Plug-in Lamp Module is a Plug-in Lamp Module which integrates with other Linear Z-Wave enabled products. It can also act as a wireless repeater to ensure that commands intended for another device in the network are received (useful when a device would otherwise be out of radio range).
Auto-Sense
Unique to Linear, the Auto-Sense feature allows for local lamp activation independent of the Z-Wave controller status. With AutoSense, one can simply switch the connected lamp's manual switch off, then on, and AutoSense will instruct the PD300Z-2 to turn the lamp on.
Specifications
- Signal (Frequency): 908.42 MHz
- Maximum Load (Incandescent): 300W maximum, 120 VAC
- Range: Up to 100 feet between the wireless controller and/or the closest Z-Wave device
- Z-Wave Version 4.55
- Network Inclusion
- Scene: Command Class
- Security Compatible
- Auto Sense Feature Built-In
Power Requirements
