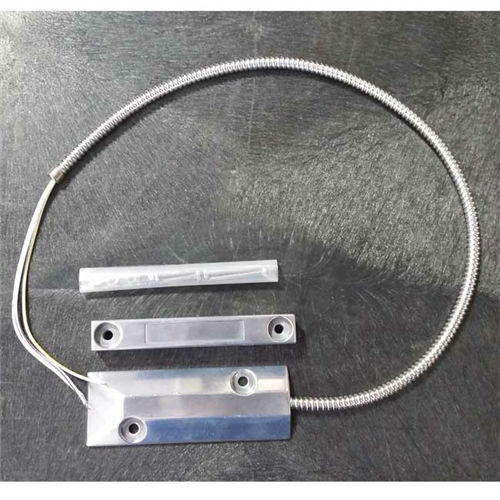

Industrial Overhead Door Contact

Specifications:

Connection: 27” 22 guage wire enclosed Armoured Cable

Output: 2023 - Form A / Normally Closed w / Magnet Present

2022 - Form C / Dual Output (Form A / B - N/C \ N/O)

Contact Rating: 2023 - 28VDC - 500mA - 10W

2022 - 28VDC - 500mA - 3W

Operating Temperature: 32° F - 120° F (0° C - 49° C)

Gap: 3 in (76.2mm) Max

Reed Switch Hermetically Sealed in Heavy Duty Shock Resistant Aluminum “Flat Plate” Housing

Rhodium Over Gold Reed Switch

High Grade Magnet Enclosed in Aluminum Housing, Attached to Custom Fit L-Bracket
