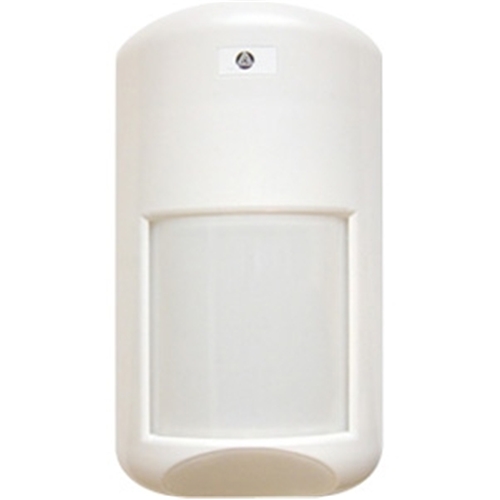

Aleph QT60 Passive Infrared Detector
- Quad Tech - combination microwave PIR
- Indoor motion detector
- QMA - Qualified Motion Analysis
- Dual Slope Temperature Compensation
- Optional 100 lb Animal Immunity Lens Included
- Multi-Function LED / Ambient Temperature Detection / Self Dimming LED
Specifications
| Pattern Coverage |
60' x 74' |
| Pulse Count |
Jumper Selectable: PC2, PC4 |
| Warm Up Time |
25 - 45 Seconds |
| Alarm Period |
2.4 Seconds, Retriggerable |
| Visual Indicator |
Red LED (Selectable On/Off) |
| Input Voltage |
10 to 16 VDC, 12 VDC Nominal |
| Mounting Height |
7 to 8.5 ft (2.1 to 2.6 m) |
| Operating Temperature |
-10° C ~ +55° C (-14° F ~ +131° F) |
| Weight |
3.0 oz / 83 g |
| Dimensions |
4.8 in H x 2.5 in W x 1.7 in D / 122mm x 64mm x 43mm |
Download installation guide
