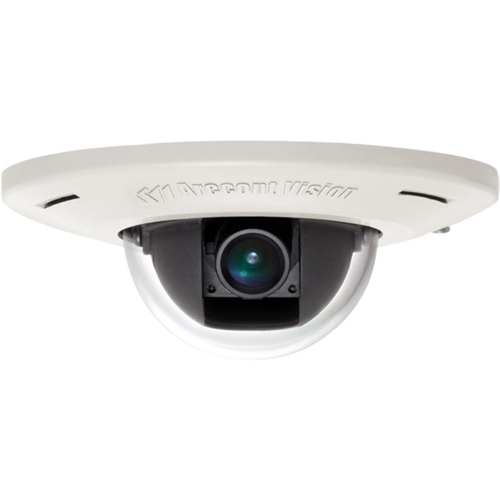

2.07 Megapixel WDR In-ceiling Mount Indoor Vandal Resistant Dome IP Camera, 4mm IR Corrected Lens, Microphone

Ultra-low profile, WDR, Arecont Vision MicroDome™ H.264 all-in-one multi-megapixel cameras in 1.3-, 1080p, 3- or 5-megapixels, fast frame rates and a 4mm fixed lens in a flush mount indoor dome. True Day/Night functionality. Wide Dynamic Range (1080p and 3MP). Binning mode (3MP and 5MP). 1024-zone motion detection with privacy masking.

• All-In-One, 2.07 Megapixel, Wide Dynamic Range, 30fps, 4mm Lens, Day/Night, H.264/MJPEG, MicroDome IP Camera
• Vandal-Resistant Housing
• Low Profile Design
• Forensic Zooming
• Privacy Mask, Flexible Cropping and 1024 Zones of Motion Detection
• ONVIF and PSIA compliant
• Dual Encoder H.264/MJPEG, Multi-Streaming and Bit Rate Control

WDR MicroDome™ offers all of the great features of existing Arecont Vision megapixel camera technology like superior image quality and the industry’s fastest frame rates, and now in a much smaller, more discreet housing. With an integrated mechanical day/night switcher and pixel binning in 3 and 5 megapixel, the MicroDome™ has excellent low-light capabilities. With an option for true Wide Dynamic Range of up to 100dB at full resolution there are no lighting conditions too tough for the MicroDome™.

Pixel Density
2.10 MP

Full Field of View (FOV) Resolutions
1920 (H) x 1080(V) HDTV-1080p

Frame Rate
31.0 fps

Mechanical

• Casing:
  In-ceiling mount with die-cast aluminium cover and 2" polycarbonate dome bubble
  Vandal Resistant
• Lens: 4mm board mount (M12), fixed iris, 1.6mm aperture
• Gimbal: Easy 2 axis camera adjustment w/ 359° pan and 90° tilt
• Dimensions: Ø 4" (100mm) x 3.1" H (78.5mm)
• Weight:
  Unit: 0.7lbs (1.27kg)
  Packaged: 1.3lbs (1.54kg)

Cropped Resolution

• 1280(H) x 1024 (V) 1/4 resolution

Data Transmission

• Video frame rate up to 42fps @ 1280x1024
• Compression type:
  H.264 (MPEG4, Part 10) / Motion JPEG
  21 levels of quality
• TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP, DHCP protocols
• 100Base-T Ethernet Network Interface
• Bit rate control from 100Kbps to 10Mbps
• Multi-streaming: 8 non-identical streams

Electrical

• General purpose opto-coupled input and output
• Power over Ethernet (PoE): PoE 802.3af, Class 3
>
• Power consumption: 5.59 Watts

Regulatory

• CE Mark, UL Listed

Standard

• PSIA and ONVIF Conformant

Programmability

• Motion Detection and privacy mask with 1024 detection zones
• Shutter speed: 1ms - 500ms
• Pixel Binning Mode (3MP and 5MP Models)
• Auto adjust between WDR and LDR modes
• Casino Mode maintains 30fps (AV2455 Model)
• MoonLight™ Mode
• Flexible Cropping (resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264)
• Bit rate and bandwidth limitation control
• Backlight compensation and multi-matrix white balance
• 50/60Hz selectable flicker control
• Electronic pan, tilt, zoom (PTZ) and image flip 180°
• Programmable resolution, brightness, saturation, gamma, sharpness, tint

Environment

• Operating temperature -5°C (23 °F) to +50°C (140 °F)
• Stable image temperature 0°C (32 °F) to +50°C (122 °F)
• Storage temperature -20°C (-4 °F) to +60°C (140 °F)
• Humidity 0% to 90% (non-condensing)
• Compliance: RoHS, REACH, WEEE

Product Imaging

• 2.07 megapixel CMOS image sensor
• Full resolution: 1920 (H) x 1080 (V) pixel array
• 1/3.2” optical format
• 2.2 µm pixel pitch
• Minimum illumination of:
• Color(non-binned): 0.3 Lux @ F1.6
• Day/Night: 0 Lux, IR sensitive
• Dynamic range WDR up to 100 dB
• Frame Rate:
  31fps (1920 x 1080)
  42fps (1280 x 1024)
