Feature List

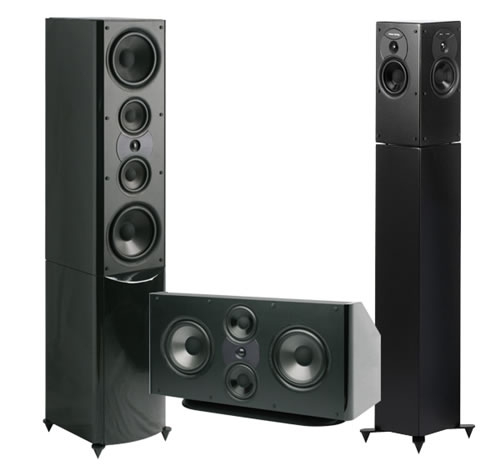

- 3-way system with dual 8" woofers
- 8200e C uses identical drivers as LR for ideal tonal and dispersion match
- Acoustic controls optimize performance in any room
- Dipole/bipole switchable surround speakers
- Optional sand-fillable Peds raise LRs to optimum listening height
- Recommended subwoofer: THX-certified 642e SB
Specifications
| Model |
8200e LR |
8200e C |
8200e SR |
| Type |
Sealed-box, 3-way |
Sealed-box, 3-way |
Sealed-box, 2-way
Dipole/Bipole surround speaker |
| Drivers |
|
|
|
| Woofer |
(2) 8" GLH |
(2) 8" GLH |
(2) 5.25" GLH |
| Midrange |
(2) 5.25" GLH |
(2) 5.25” GLH |
|
| Tweeter |
(1) 1" silk dome |
(1) 1" silk dome |
(2) 1” silk dome |
| Frequency Response |
60Hz – 20kHz ±2dB |
60Hz – 20kHz ±2dB |
80Hz – 20kHz ±2dB |
| Nominal Impedance |
6Ω |
6Ω |
6Ω |
| Crossover Frequency |
450Hz, 3kHz |
450Hz, 3kHz |
3kHz |
| Crossover Type |
Computer designed Butterworth 4th order asymmetrical (time-aligned)
Linkwitz-Riley |
| Sensitivity |
90dB |
90dB |
90dB |
| Recommended Amplifi er Power |
25 – 200 Watts RMS |
25 – 200 Watts RMS |
15 – 150 Watts RMS |
| Magnetic Shielding |
Yes |
Yes |
No |
Dimensions w/ grilles(W x H x D)
|
10.6 x 31.1 x 11.9in
270 x 790 x 302mm |
28.5 x 16 x 13in*
724 x 406 x 330mm* |
10.8 x 15.3 x 7.8in
275 x 380 x 193mm |
| |
Pedestals including feet, spikes, and gap between satellite and pedestal top adds height: |
| |
22.4in., 569mm |
|
37.8in., 951mm |
| Weight (ea) |
53.0lbs; 24.0kg |
55.0lbs; 25.0kg w/base |
20.0lbs; 9.1kg |
|
