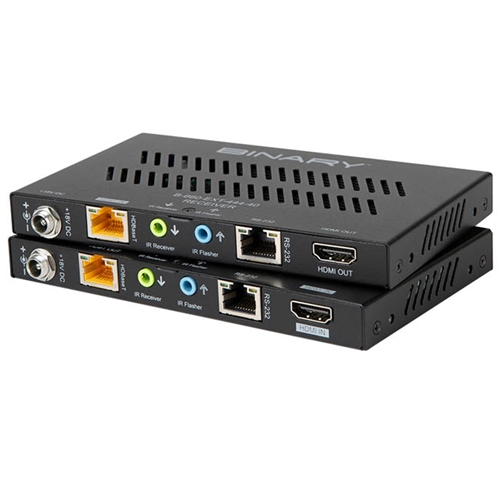

Binary™ B-660 Series 4K HDR HDBaseT Extender with IR & RS-232
B-660-EXT-444-40
Full 4K HDR Content
This extender offers full support of [email protected] (4:4:4), HDR including HDR 10, HLG up to 4K60, HDR10+ and Dolby Vision up to 4K30. Audio support is provided for Dolby® True HD, Dolby® Digital Plus, DTS™-HD Master and LPCM audio formats. This product is compatible with HDMI 2.0/ HDCP 2.2 products as well. Please note: 4K support varies by distance and cable type. Please refer to specifications for further details.
Bi-Directional Power over Cable (POC)
No room for a bulky power supply behind the TV or in a rack? Not a problem. With Bi-Directional Power over Cable (POC), you can send power over the same category cable that extends your video, audio, and control signals. This means you only need one power supply - and you can put it at the head end or display to get it completely out of the way. Plus, the extender features screw-down power plugs, so you never have to worry about getting service calls because a plug fell out when the TV was moved. Now those are some real reasons to celebrate!

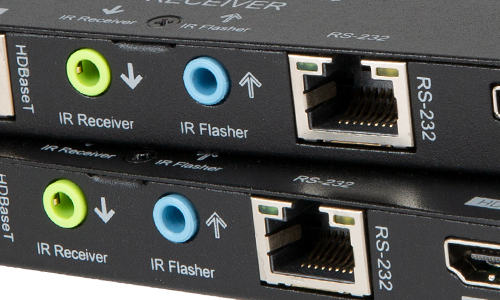

Complete Control with Bi Directional IR, RS-232 & CEC
Thanks to bi-directional IR and RS-232, you get no-hassle integration with a variety of control systems, and you can easily send IR signals from the TV location back to cable boxes, DVD players, and other source equipment at the head end. CEC Passthrough support allows direct control of the connected device via HDMI.
Built-In ESD and Surge Protection, Thermal Reliability
Intelligent circuit design, perfected through extensive hardware testing, has resulted in a robust product with excellent ESD and surge protection that exceeds CE Level 3 standards. During development, every connection was tortured with an ESD gun and a lightning simulator. They were hit with ESD at 15KV and surges up to 1600V. More importantly, though, they each lived to tell about it!
Package Contents:
- (1) DC 18V Power Adapter with US Pins
- (4) Mounting Brackets (with Screws)
2-Year Limited Warranty
This Binary™ product has a 2-year limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty will not apply to products that have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization number (RA).
