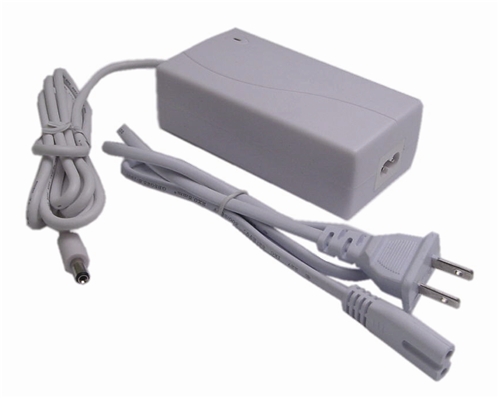

White 12V DC, 5 Amp L.E.D Lighting Power Supply

Calrad’s new high efficiency switchmode power supply provides 12Vdc at 5 Amps and is specifically designed for White or colored (RGB) L.E.D. lighting applications. The white color chassis helps the product blend into any decor. Using Calrad’s 30-333T adapter you can easily connect wiring to (+), (-) screw terminals without the need for soldering or splicing cables together.

Specifications:
• Operates on 110-220 Vac
• Soft-start current can reduce the AC input impact to 12Vdc loads
• CE, FCC approved, RoHS Compliant
• Over voltage protection: 120%min
• Over Current protection: 120%min
• Short-circuit protection: Automatic recovery
• Load regulation: ±5% • Input Voltage: 110-220Vac
• Output Voltage: 12Vdc • Output Current: 5Amps
• Output Termination: 2.1mm Male Coax Plug, positive center, 6 ft. cord.
• Size: L-4.6” x W-2.35” x H-1.5”
