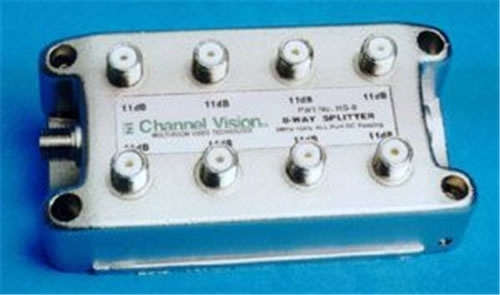

HS-8 8-way splitter combiner 1GHz, DC Pass all Ports

Key Features

• 8-way splitter / combiner, 1GHz, DC pass all ports
• bulk pack-poly bag
• 11.0dB insertion loss
• Machine threads
• Grounding screw

Technical Specifications

• Bandwidth:5-1000MHz
• Typ insertion loss: 11dB
• Max insertion loss @ 1000MHz:13dB
• RFI isolation: -120dB
• Return loss 50-1000MHz: >16dB
• Out to out isolation 50-1000MHz: >18.5dB
• DC resistance OUTPUT to IN: <.1ohms
• Input/Output Connectors: F type female
• Max DC pass thru current: 500 mA
