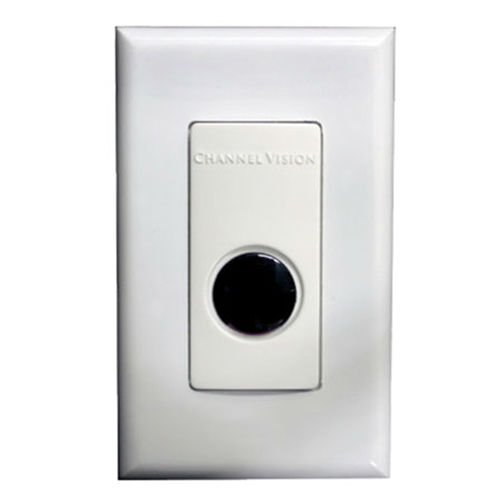

J-Box IR Repeater Receiver – IR-2005
A single room IR Repeater system can be created by connecting the IR- 2005 with the P-1205. Connect the three screw terminals on the P-1205 to the screw terminals on the IR-2005 using a 3- conductor wire (18-24AWG). CAT5 wire can be used, but only 3 of the 8 conductors are needed.
Key Features
- IR receiver mounts in a wall electrical box to deliver IR commands to connecting block or distribution hub
- Plasma-resistant IR repeater is safe for use around plasma televisions
- Designed for use with single- or multi-room IR Repeater Systems
- Includes decorator style trim ring
