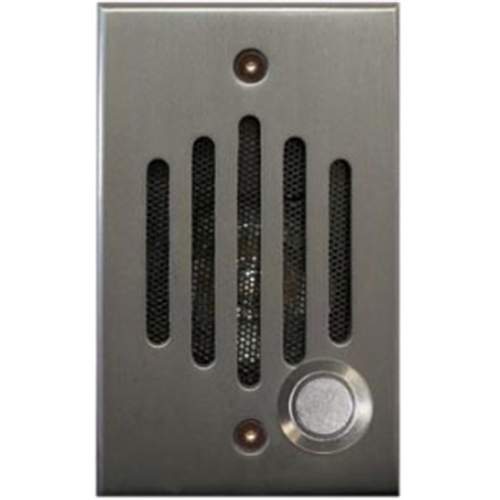

U Series Intercom System OIL-RUBBED BRONZE

Designed to match popular lock and door hardware, Channel Vision’s ¼” solid brass Front Door Intercoms provide residents with one of the largest selections available, including two sizes and eight different fi nishes. These units integrate a weather-resistant speaker/microphone, doorbell button, and wall plate into one entry unit. Both models are available in four different versions to suit a variety of systems, along with an option for a hidden camera. By combining the Front Door Intercom and camera with a Channel Vision RF modulator (sold separately), a complete residential audio/video access control package can be created.

SPEC SHEET

Key Features

• 1/4” thick solid brass plate
• Discrete speaker and microphone
• Hidden camera option available
• Fits a single gang box
• Available in 8 different finishes
• Dimensions: 4.5”L x 3.75”W .25”D

Technical Specifications

Included Speaker Specifications

• Size: 50mm
• Depth: 1.5 in
• Impedance: 8 Ohms
• Power Peak: 0.2W
• Frequency Range: 500 Hz- 4.5 kHz
• Waterproof: Yes

Color Camera Specifications

• Camera Lens: 5.5mm
• Resolution: 550 lines
• S/N Ratio: More than 48 dB
• Min Illumination: 0.2 LUX @ F2.0
• Power Consumption: 12VDC, 65mA
• Electronic Shutter: 1/60s – 1/100,000s
• Iris Control: Automatic
• White Balance: Automatic
• Video Output: 1 Vp-p @ 75 ohms
• Dimensions: 1.18” x 1.18” x 0.55” (30 x 30 x 18mm), camera only
• Operating Temperature: -10˚C to 50˚C (14˚F to 122˚F)
