CMS440

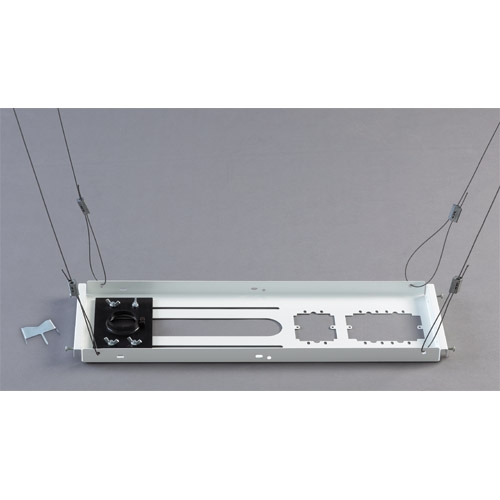

Speed-Connect Above Tile Suspended Ceiling Kit
This ceiling tile kit provides a host features that make installing most lightweight front projectors faster and more secure. Chief also offers the CMS440P ceiling kit with built-in power conditioner and also the CMS440N with an assembled electrical housing.
Features
- WireVice Cable Suspension System for quick and easy tie-off
- TwisTile Ceiling Tile Cutter easily pierces a circular hole in the ceiling tile for extension column
- Flexible solution provides infinite column placement within a 2' x 2' or 2' x 4' ceiling tile
- Single and dual electrical outlet cutouts
- All-Points Security System provides exclusive locking hardware at column connection point to protect against theft
- Includes (4) 25' flexible cables, (4) wood eyebolts, (4) concrete anchors and a chrome trim ring
- Fits 24" (600 mm) wide ceiling tile grids
- 1.5" NPT compatible
Specifications
| Certifications: |
TUV Approved, UL Listed |
| Color: |
White |
| Overall Dimensions (H x W x D): |
1.3" x 8.0" x 23.4" (32 x 203 x 595 mm) |
| Weight Capacity: |
50 lbs (22.7 kg) |
