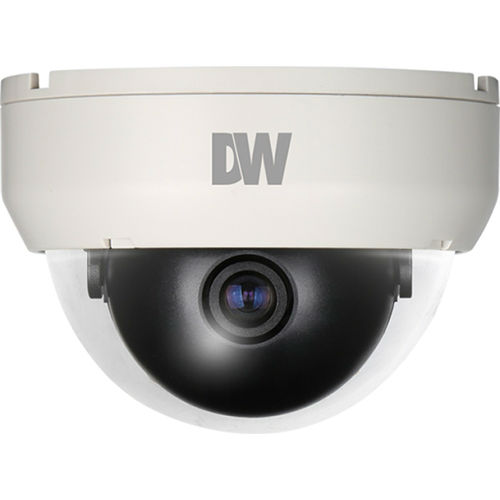

DWC-D6351D
The new Value CMOS cameras are the latest addition to the Digital Watchdog’s powerful yet affordable cameras. The camera has a 3.6mm fixed lens with 520 TV Lines, and it offers auto features such as 2D-Digital Noise Reduction all in a compact and discrete housing.
Features
- 3-Axis Bracket (Simple Camera Positioning)
- D/N - Day/ Night: Electronic Day & Night
- DNR - Digital Noise Reduction: Auto 2D DNR
- DRC - Dynamic Range Compressor: Auto
- Image Sensor: 1/3" CMOS Sensor
- Lens: 3.6mm Fixed Lens
- Low Power Consumption
- Resolution: 570 TV Lines [B/W], 520 TV Lines [Color]
- Small & Compact Size
- Ultra Low Light Sensitivity
- Warranty: 2 Years Limited
Specification
| Image |
| Frequency |
|
15.734KHz (H), 59.95Hz (V) |
| Image Sensor |
|
1/”3 CMOS Sensor |
| Minimum Illumination |
|
F1.2 (30IRE): 0.17 Lux [Color] F1.2 (30IRE): 0.06 Lux [B/W] |
| Resolution |
|
570 TV Lines [B/W], 520 TV Lines [Color] |
| S/N Ratio- Signal to Noise Ratio |
|
52dB |
| Scanning System |
|
2 : 1 Interlace |
| Synchronization |
|
Internal |
| Total Pixels (H X V) |
|
728 (H) X 488 (V) |
| Video Output |
|
CVBS: 1.0Vp-p / 75 Ω |
| Lens |
| Focal Length |
|
3.6mm |
| Lens Type |
|
Fixed |
| Mechanical |
| Dimensions |
|
Ø 90 X 68.5 mm (3.54 x 2.7 Inch) |
| Housing Material |
|
Plastic |
| Housing Type |
|
Indoor Dome |
| Warranty |
|
2 Years Limited |
| Weight |
|
0.028 lbs |
| Operational |
| AWB |
Auto White Balance |
Auto |
| DNR |
Digital Noise Reduction |
Auo 2D DNR |
| DRC |
Dynamic Range Compressor |
Auto |
| Environmental |
| Operating Humidity |
|
Less than 90% (Non-Condensing) |
| Operating Temperature |
|
-10⁰C ~ 55⁰C (14⁰F ~ 131⁰F) |
| Power Consumption |
|
DC12V: 0.8W, 66mA |
| Voltage |
|
12VDC |
