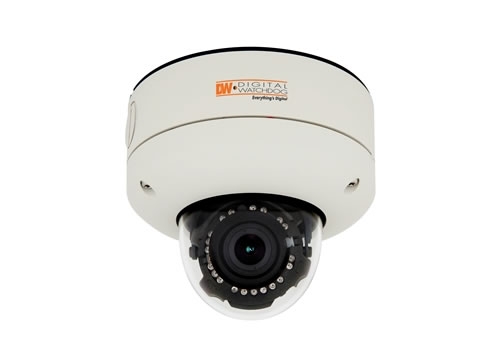

DWC-V4363TIR - Vandal Proof Dome (with Star-Light Technology)
Our new simple to install housing series combined with our reliable camera technology series gives you a high quality camera in just a few minutes. All Snapit housings include both a built-in UTP and RS-485. Our Snapit vandal dome cameras have a built-in junction box and is IP68 certified. Submerse the camera in water, and it will still work properly!
Our Snapit Vandal Dome V4363TIR is powered by our Star-Light technology, which offers super low light imaging for any application. At night, our Smart IR technology also helps to illuminate the scene up to 70 feet without added lighting. |
FEATURES:
- 1/3" Sony Super HAD II CCD
- 560 TV Lines
- 3.3~12mm Varifocal Auto Iris Lens
- 70ft Range IR with Intelligent Camera Sync
- TDN (True Day and Night/TDN5)
- 3D-DNR (3D Digital Noise Reduction)
- Star-Light (Super Low Light Technology)
- DSS (Digital Slow Shutter)
- DRC (Dynamic Range Compressor)
- HME (Highlight Masking Exposure)
- AGC (Auto Gain Control)
- BLC (Back Light Compensation)
- AWB (Auto White Balance)
- Negative Imaging
- Mirror Image Control
- UTP / RS485 Built-in
- Junction Box Built-in
- Programmable Privacy Zone (8) & Motion Detection
- Easy Icon Driven OSD Menu with Built-in Joystick
- Auto-Sensing 24 VAC / 12 VDC with Line Lock
- Secondary Video-BNC Output
- IP68 Certified
|
SPECS:
| Image Device |
Sony Super II HAD CCD |
| Image Size |
1/3 |
| Image Pixels Total |
811 (H) X 508 (V) |
| Image Pixels-Effective |
768 (H) X 494 (V) |
| Minimum Scene Illumination |
0.0 Lux |
| IR Distance |
70ft Range IR with Intelligent Camera Sync |
| Functions |
BLC, AGC, Flicker Less, AWB, Motion Detection, Privacy Zone, 3D-DNR, HME, Star-Light, RS485, TDN, Dual Voltage, Mirror Image, Negative Image, Icon Menu, DSS, GAMMA, Freeze, DRC, |
| Lens |
3.3 ~ 12mm Varifocal Auto Iris Lens |
| Horizontal Resolution |
560 TV Lines [Color], 580 TV Lines [B/W] |
| Operating Temperature |
-29°C ~ 55°C (20.2°F ~ 131°F) |
| Operating Humidity |
Less than 90% |
| Power Requirements |
12VDC / 24VAC |
| Power Consumption |
LED OFF: 2.3W, 191.7mA / 2.5W, 104mA LED ON: 4.8W, 400mA / 4.9W, 204mA |
| Dimensions (W x H) |
139 X 118.8 mm (5.47 X 4.68 in) |
| Certificatons Held |
CE, FCC, RoHS |
| Warranty (Limited) |
5 Year |
| Weight |
2.05 lbs |
|
|
