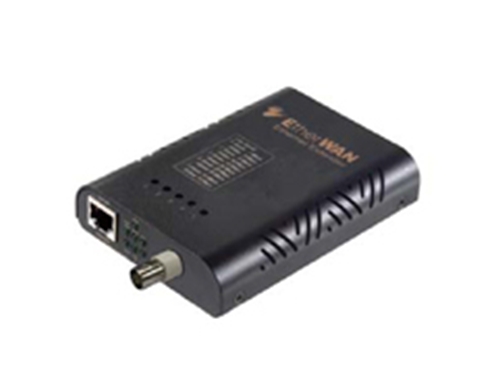

Industrial 10/100BASE-TX Ethernet Extender over Coaxial Cable
- Operates transparent to higher layer protocols
- Ethernet Port: 10/100Mbps-Full-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Ethernet Extender Port: Symmetrical on the VDSL, High-speed full-duplex up to 170Mbps communications link over existing coaxial cable
- Supports DIP switch to select Local or Remote side
- Ten reference speeds supports Up to 85Mbps @ about 200meters (656ft.), 1Mbps @ about 2600 meters (8,530ft.)
- -10°C to 60°C (14°F to 140°F) operating temperature range
- Hardened aluminum case
- Supports Din-Rail, Wall Mounting installation
- Supports EMC1600 chassis system installation for easy management and power redundancy accomplishment
Technology
Standards
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX,IEEE802.3x,
Protocols
Transparent to higher layer protocols
Processing Type
IEEE802.3x Full-duplex flow control
Power
Input
Input Voltage: 12VDC
Power Consumption
5.76W Max. 0.48A@12VDC
Mechanical
Casing
Aluminum case
Dimensions
80.3mm (W) x 109.2mm (D) x 23.8mm (H)
(3.16" (W) x 4.30" (D) x 0.94" (H))
Weight
150g (0.33lb.)
Installation
DIN-Rail (Top hat type 35mm), Wall Mounting
EMC1600 Chassis
Interface
Ethernet Port
Port: One RJ-45 port, 10/100BASE-TX Full-duplex
Auto-Negotiation, Auto-MDI/MDIX
Distance: 100meters (328ft.)
Cable: 10BASE-T: UTP CAT. 3, 4, 5 (2-pair wire)
100BASE-TX: UTP CAT. 5 (4-pair wire)
Ethernet Extender Port
Port: One 75Ω BNC Port (with F-type connector)
Speed Display: 1/5/10/20/30/40/50/60/70/75Mbps
Max. Distance: 2,600meters (8,530ft.)
Cable: Coaxial Cable (5C2V / RG6AU)
Speed /Distance Reference
Speed: 1-5Mbps
Distance: 2,600M (8,530ft.)
Speed: 6-10Mbps
Distance: 2,400M (7,874ft.)
Speed: 11-16Mbps
Distance: 2,000M (6,561ft.)
Speed: 17-20Mbps
Distance: 1,800M (5,905ft.)
Speed: 21-29Mbps
Distance: 1,600M (5,249ft.)
Speed: 30-43Mbps
Distance: 1,400M (4,593ft.)
Speed: 44-54Mbps
Distance: 1,200M (3,937ft.)
Speed: 55-63Mbps
Distance: 1,000M (3,280ft.)
Speed: 64-74Mbps
Distance: 600M (1,968ft.)
Speed: 75-85Mbps
Distance: 200M (656ft.)
DIP switch
One DIP switch: Local (CO) or Remote (CPE)
LED Indicators
Per Unit: Power Status (Power)
Per Port: 10/100TX: Link/Activity, Full-duplex
Line: Error, Link, Local, Remote
NOTE:
All speed selections are Symmetrical on the DSL.
