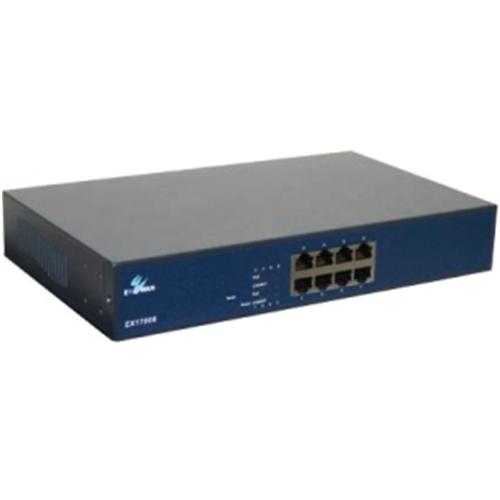

Unmanaged 8-port PoE 10/100BASE-TX Ethernet Switch
- 8 ports support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- 100 - 240VAC, 50-60Hz Internal Universal PSU
- 0°C to 45°C (32°F to 113°F) operating temperature range
Technology
Standards
IEEE 802.3af, IEEE802.3 10BASE-T, IEEE802.3u
100BASE-TX/FX, IEEE802.3x
Forward and Filtering Rate
14,880pps for 10Mbps
148,810pps for 100Mbps
Packet Buffer Memory
512K bits
Processing Type
Store-and-Forward
Half-duplex back-pressure and IEEE802.3x full-duplex flow control
Address Table Size
1024 MAC addresses
Power
Input
100 - 240VAC, 50 - 60Hz Internal Universal PSU
Power Consumption
132W Max.
Mechanical
Casing
Metal case
Dimensions
266mm (W) x 160mm (D) x 44mm (H)
(10.47" (W) x 6.30" (D) x 1.73" (H))
Weight
1.4Kg (3.08lbs.)
Installation
Desktop, Rack Mounting
Interface
Ethernet Port
10/100BASE-TX: 8 PoE ports
LED Indicators
Per Unit: Power Status
Per Port: 10/100TX, 100FX: Link/Activity, PoE Act/status
Environment
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Ambient Relative Humidity
10% to 95% (non-condensing)
Regulatory Approvals
ISO
Manufactured in an ISO9001 facility
Emission Compliance
FCC Part 15, Class B, CE mark Class B
Safety
UL60950-1, EN60950-1, IEC60950-1
