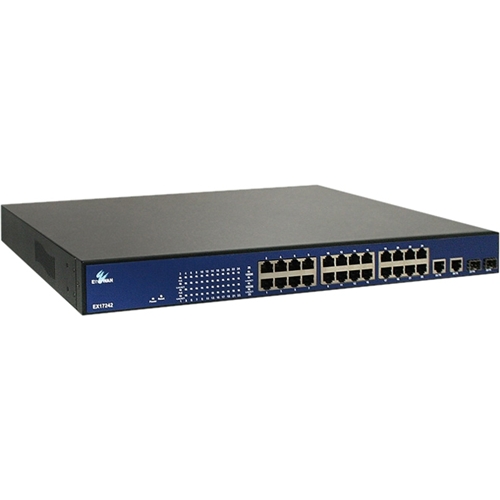

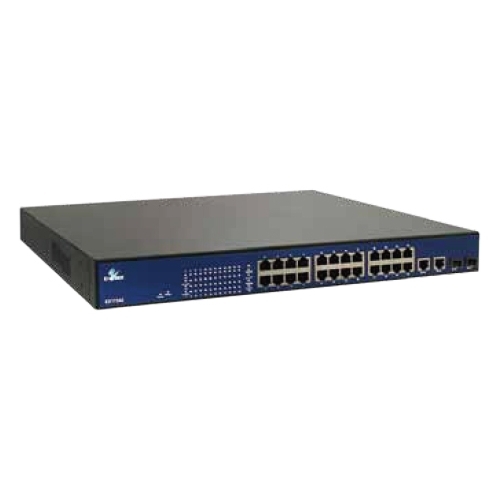

Web-Smart 24-port PoE 10/100BASE-TX and 2-port combo Gigabit SFP Ethernet Switch
- 24 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
- PoE (Power status, Link status) through the Web browser Interface
- System, IP Configuration, Port based VLAN, QoS Mode, QoS Priority, MAC/Port based trunking through the Web browser interface
- 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Internal Universal PSU 100VAC - 240VAC, 50 - 60HZ
- Operating Temperature Range 0°C - 45°C (32°F - 113°F)
Technology
Standards
IEEE 802.3af, IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3x,
IEEE802.3ab 1000BASE-TX, IEEE802.3z 1000BASE-SX/LX, IEEE802.1p,
IEEE802.1Q, IEEE802.1w, IEEE802.1D
Forward and Filtering Rate
14,880pps for 10Mbps
148,810pps for 100Mbps
1,488,100pps for 1000Mbps
Packet Buffer Memory
2.75M bits
Processing Type
Store-and-Forward
Half-duplex back-pressure and IEEE802.3x full-duplex flow control
Address Table Size
4096 MAC addresses
Power
Power Input 100 - 240VAC, 50 / 60Hz
Power ConsumptionEX17242: 390W Max.
PoE power budget: 369.6W
EX17242L: 195W Max.
PoE power budget: 180W
PoE Power OutputIEEE802.3af: up to 15.4W/port, 47 - 55VDC, 350mA Max
Mechanical
Casing
Metal case
Dimensions
440mm (W) x 330mm (D) x 44mm (H)
(17.6"(W) x 13.2"(D) x 1.76"(H))
Standard 19" rack-mount size, one-unit-height
Weight
4.7Kg (10.36lbs.)
Installation
Rack Mounting
Interface
Ethernet Port
10/100BASE-TX: 24 PoE ports
Gigabit: 2 ports
LED Indicators
Per Unit: Power Status
Per Port: 10/100TX: Link/Activity, PoE Act/status
Gigabit: Link/Activity
Environment
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Ambient Relative Humidity
10% to 95% (non-condensing)
Regulatory Approvals
ISO
Manufactured in an ISO9001 facility
Emission Compliance
FCC Part 15, Class A, CE mark Class A
