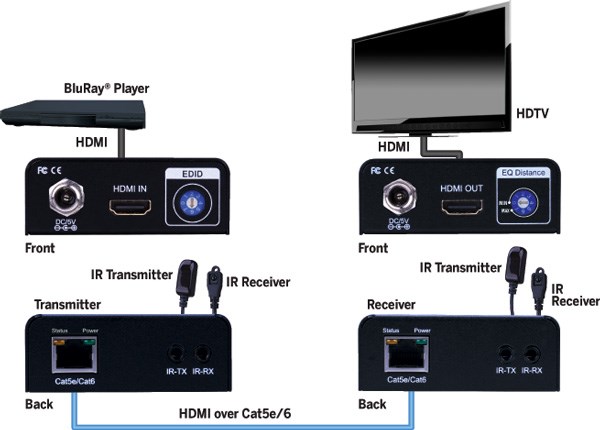

EVOLUTION EVEX2005 HDMI EXTEND OVER SINGLE CAT5E/6 W/IR

• Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
• Wide band Bi-directional IR system allowing for control of source or display (IR accessories included) Wideband IR signal from 20KHz to 60KHz
• Transmission Range: Extends 1080p resolution up to 131ft/40m over Cat5e/6
• Works with HDMI and HDCP compliant devices
• Supports up to 1080p High Definition resolution
• Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment
• Features EQ distance dial for perfect transmission and reception of HDMI signals
• Supports HDMI Deep Color & 3D
• Extends HDMI transmission up to 40m (131ft) from the HDMI source at Full HD 1080p 24-bit
• HDCP 2.0 compliant
• EDID manual select control - Supports copy EDID and auto EDID learning
• Pure unaltered uncompressed 7.1ch digital HDMI over a single Cat5e/6 cable transmission
• Supports DTS-HD and Dolby TrueHD high bit rate audio
• Allows cascading to create a larger distribution system
• Wall mounting housing design for easy installation
• Fully compatible with any Evolution by Vanco product
• Dimensions: 3.6” (91mm) W x 1.1” (28mm) H x 2.8” (71mm) D

Package Contents:

• EVEX2005 (TX & RX)
• IR Blaster (TX)
• IR Receiver (RX)
• (2) DC 5V in line power supply
• Rack-mounting ear set
• Product Manual
