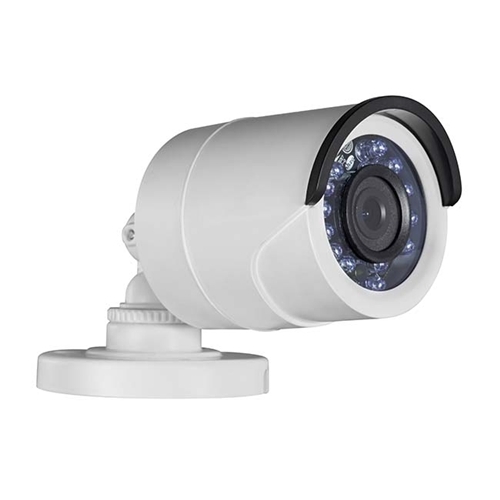

HUNT HNC303-MB 3MP BULLET IP66 4MM POE DWDR 100FT IR
- 3 Megapixel High Resolution
- Full HD 1080p Video Output
- Low Illumination
- 3D DNR & True WDR & BLC
- IP66 Rating
- IR Range: up to 100ft
- True Day / Night
| Model Number |
HNC301-MB |
|
| Image Sensor |
1/3″ progressive scan CMOS |
|
| Min. illumination |
0.01 lux @ F1.2, AGC ON, 0 lux with IR |
|
| Shutter time |
1/30s ~ 1/100,000s |
|
| Lens |
4mm @ F2.0 (2.8mm optional)
Angle of view: 75.8° |
|
| Lens mount |
M12 |
|
| Day & night |
IR cut filter with auto switch |
|
| Digital noise reduction |
3D DNR |
|
| Wide dynamic range |
True WDR, 120db |
|
| Video compression |
H.264 / MJPEG |
|
| H.264 codec profile |
Main profile |
|
| Bit rate |
32 Kbps ~ 16 Mbps |
|
| Max. Image Resolution |
2048 x 1536 |
|
| Frame rate |
60Hz: 15fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720) |
|
| Image settings |
Saturation, brightness, contrast, sharpness adjustable through client software or web browser |
|
| BLC |
Yes, zone configurable |
|
| Network storage |
NAS |
|
| Alarm trigger |
motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
|
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos |
|
| Interoperability |
ONVIF, PSIA, CGI |
|
| Security |
User Authentication, reset button, flickerless, dual stream, heartbeat, mirror, watermark |
|
| Communication interface |
1 RJ45 10M/ 100 M Ethernet interface |
|
| Operating conditions |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) humidity 90% or less (non-condensing) |
|
| Power supply |
12 VDC +/- 10%, PoE (802.3af) |
|
| Power consumption |
Max, 5W (7W with ICR on) |
|
| Weather proof rating |
IP66 |
|
| IR range |
UP to 30m |
|
| Dimension |
60.4 x 76.5 x 138.1mm (2.4″ x 3″ x 5.5″) |
|
| Weight |
300g |
