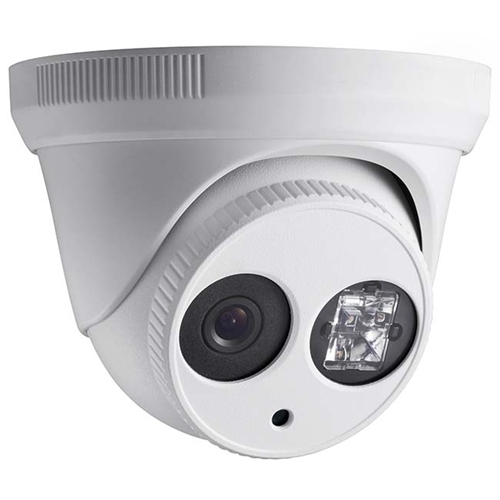

HUNT HNC303-XD/2.8 3MP TURRET IP66 2.8MM POE EXIR DWDR
3MP EXIR Turret, Exterior
- 3 Megapixel (2048 x 1536) Resolution
- Full HD 1080p real-time video
- True WDR & 3D DNR & BLC
- EXIR illuminator up to 100ft.
- IP66
- PoE
| Model Number |
HNC303-XD |
|
| Image Sensor |
1/3″ progressive scan CMOS |
|
| Min. illumination |
0.01 lux @ F1.2, AGC ON, 0 lux with IR |
|
| Shutter time |
1/30s ~ 1/100,000s |
|
| Lens |
4mm @ F2.0, angle of view: 75.8° (2.8mm optional) |
|
| lens mount |
M12 |
|
| Angle adjustment |
Pan: 0° ~ 355°, tilt 0° ~ 75° |
|
| Digital noise reduction |
3D DNR |
|
| Wide dynamic range |
True WDR, 120db |
|
| Backlight compensation |
Yes, zone configurable |
|
| Video compression |
H.264 / MJPEG |
|
| H.264 codec profile |
Main profile |
|
| Bit rate |
32 Kbps ~ 16 Mbps |
|
| Dual stream |
Yes |
|
| Max. image resolution |
2048 x 1536 |
|
| Frame rate |
60Hz: 15fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720) |
|
| Image settings |
Saturation, brightness, contrast, sharpness adjustable through client software or web browser |
|
| Network storage |
NAS |
|
| Alarm trigger |
Motion detection, tampering alarm |
|
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos |
|
| System compatibility |
ONVIF, PSIA, CGI |
|
| General functionalities |
User authentication, watermark |
|
| Communication interface |
1 RJ45 10M/ 100 M Ethernet interface |
|
| Operating conditions |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) humidity 95% or less (non-condensing) |
|
| Power supply |
12 VDC +/- 10%, PoE (802.3af) |
|
| Power consumption |
Max, 5W (7W with ICR on) |
|
| Ingress protection |
IP66 |
|
| EXIR range |
up to 100ft |
|
| Dimensions |
Ø 127 x 97.5 mm ( 5″x3.8″ ) |
|
| Weight |
670g (1.5 lbs) |
