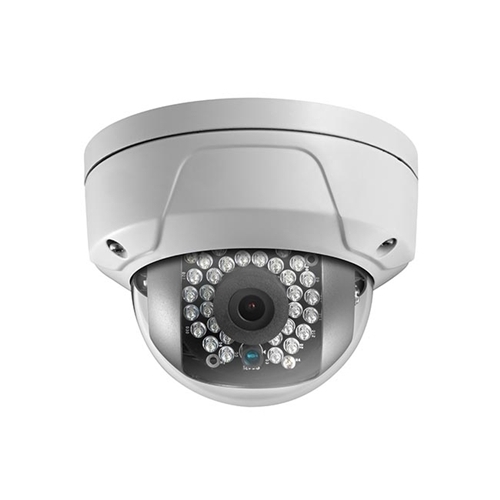

HUNT HNC304-TD 4MP VDOME IP66 4MM POE DWDR 100FT IR
4MP WDR Fixed Mini Dome, Exterior
- 4 Megapixel (2688 x 1520) Resolution
- Full HD 1080p real-time video
- 3D DNR & True WDR & BLC
- IP66 & IK10 Rating
- PoE
- Vandal-proof
| Model Number |
HNC304-TD |
|
| Image Sensor |
1/2.8″ progressive scan CMOS |
|
| Min. illumination |
0.01 lux @ (F1.2, AGC ON), 0 lux with IR |
|
| Shutter time |
1/30s ~ 1/100,000s |
|
| Lens |
4mm @ F2.0, angle of view: 75.8° (2.8mm, 6mm, 12mm optional) |
|
| Angle adjustment |
Pan: -90° ~ 90°, tilt 0° ~ 75° |
|
| Digital noise reduction |
3D DNR |
|
| Wide dynamic range |
True WDR 120db |
|
| Day & night |
ICR |
|
| Video compression |
H.264 / MJPEG / H.264+ |
|
| Dual stream |
Yes |
|
| Max. image resolution |
4 MP CMOS, 2688×1520 |
|
| Frame rate |
20fps (2688×1520), 30fps (1920×1080) |
|
| Image settings |
Saturation, brightness, contrast, sharpness adjustable through client software or web browser |
|
| BLC |
Yes, zone configurable |
|
| On Board Storage |
Micro SD slot, up to 128GB |
|
| Alarm trigger |
Motion detection, tampering alarm |
|
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos |
|
| System compatibility |
ONVIF, PSIA, CGI |
|
| General functionalities |
User authentication, watermark |
|
| Communication interface |
1 RJ45 10M/ 100 M Ethernet interface |
|
| Operating conditions |
-10°C ~ 40°C (14°F ~ 104°F) humidity 90% or less (non-condensing) |
|
| Power supply |
12 VDC +/- 10%, PoE (802.3af) |
|
| Power consumption |
Max, 5W |
|
| Ratings |
IP66 / IK10 |
|
| IR range |
Up to 90ft |
|
| Dimensions |
Ø 4.4″x3.2″ |
|
| Weight |
500g (1.1 lbs) |
