AIS-XMP-2300
Features
- Open Standard: supports HTML5, W3C SMIL 3.0 and POPAI Screen Media Standards
- Output Interface: supports HDMI, Stereo-audio, RJ45 LAN, USB2.0, SD slot, Stereo-audio, Wireless
- Supported Resolution: 1080p Full Screen, 720p Multiple Zone
- Storage: 4GB local storage included
- Technical support for drivers (installing, and supporting files), hardware (screens, monitors, controllers, peripherals), troubleshooting procedures and general system issues
Introduction

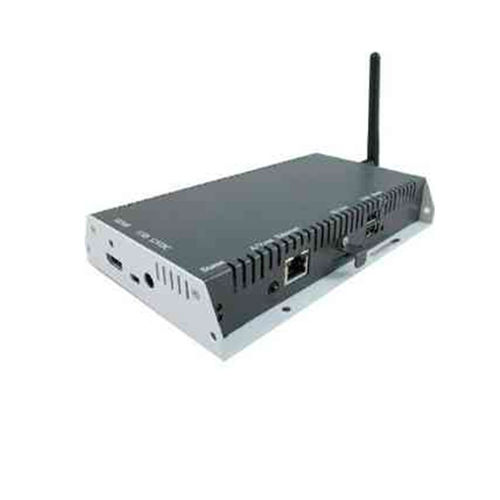

The AIS-XMP-2300 media appliance is an SMIL programmable, HTML5 digital signage device with high quality HD still-image rendering and SD video capabilities. Its wireless capability allows it to be installed where network wires cannot reach. These media players incorporate the latest wireless LAN technology and effectively reduces installation cost at deployment sites. The AIS-XMP-2300 can further be integrated into the mobile network architecture by incorporating optional 3G/4G access points.
Specifications
Networking |
Ethernet
IEEE 802.11b/g/n Wireless LAN (2.4GHz) |
Programming |
SMIL, HTML5 |
Performance |
1080p video / 720p stills |
Video Codecs |
MPEG-1, MPEG-2 or MPEG-4 ASP (DivX), up to 1920x1080 @ 20Mbps |
Image Codecs |
JPEG baseline, up to 12 megapixels, scaled for display at 1280x720 |
Audio Codecs |
MP3 up to 384Kbps |
Streaming |
Not supported |
Video |
HDMI up to 720p
Composite NTSC/PAL |
Audio |
Stereo line-out |
Local Storage |
4GB SSD (approx. 180 mins. for 720p video @3 Mbps) |
Power Consumption |
9.6 watts (typical) |
Power Supply |
12V DC @ 1.5A max |
Dimension |
183 x 115 x 29 (mm) |
Weight |
400g / 0.9 lbs. |
Environmental |
Operating temperature: 0-40°C
Humidity: 5-85% non-condensing |
Compliance |
CE / FCC / RoHS |
Standard Accessories |
Power adapter
Ethernet cable
3.5mm-to-RCA A/V cable |
