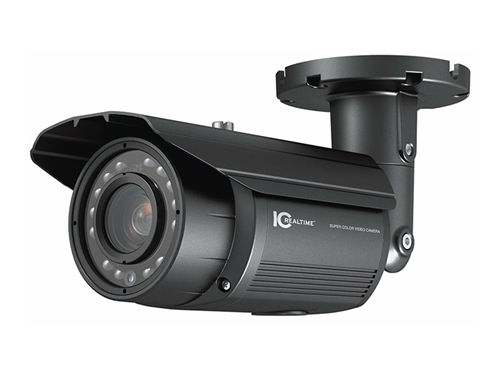

600TVL Vari-focal WideLux IR Bullet Camera
EL2000B - Specially designed professional day/night surveillance camera achieves WideLux WDR performance and Intelligent IR image compensation. Super high resolution quality of the EL2000B shows excellent performance of sensitivity in low light conditions and enhances the resolution up to 600TVL at day and 650TVL at night.
- VC65S produces High Quality 600 TVL at Day and 650TVL at Night |
- Day / Night with 2D/3D adaptive noise reduction |
- WideLux WDR with Highlight Eclipse technology |
- 2.8-12mm Vari-focal |
Imager / Electrical |
Image Sensor |
1/3"" Sony Super HAD CCD |
Effective Pixels |
NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
H.Resolution |
600TV Lines (Day) / 650TV Lines (Night) |
Synchronization |
Internal |
Scanning System |
2:1 Interlaced |
Video Output |
1.0Vp-p Composite. 75 Ohms |
S/N Ratio |
more than 52 dB (AGC off) |
Minimum Illumination |
0 Lux |
Shutter Speed |
NTSC = 1 / 60sec ~ 1 / 100,000 PAL = 1 / 50sec ~ 1 / 100,000 |
Gamma Correction |
0.45 |
White Balance |
1,800 ~ 11,000 K Auto (ATW/Push Lock/Manual selectable by OSD) |
Gain Control |
Standard: -6dB ~ 34dB Auto/Maximum by OSD |
Smear Effect |
0.005% |
Power / Physical / Environmental |
Power |
12VDC (120mA (IR Off) 520mA (IR On)) |
|
24VAC (90mA (IR Off) 400mA (IR On)) |
Lens standard |
2.8-12mm varifocal motorized DC iris lens |
Viewable Distance |
Up to 150' in 0 lux |
MTBF of IR |
20,000 hours |
Iris control |
DC Iris |
Operating Temp |
14 - 122 F (-10 - 50 C) 90% RH |
Dimensions |
4.33"" x 5.43"" x 10.72"" (110mm x 138mm x 272.3mm) |
Weight |
4.85lb or 77.60oz or 2,200g |
