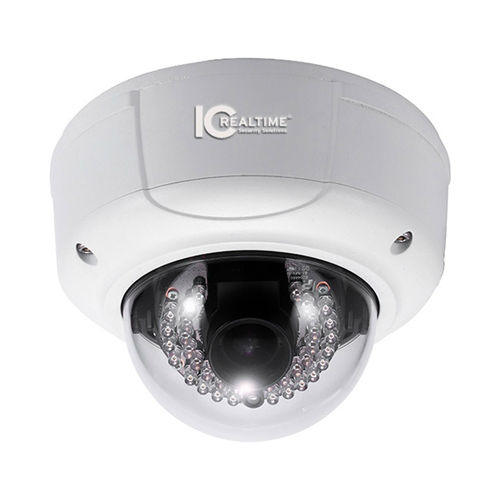

3.0 MegaPixel 3.3-12mm VF IR Vandal IP Dome with SD & POE
Features
1/2.8" 3.0 Megapixel SONY Progressive Scan Exmor CMOS image sensor |
High-performance TI DaVinci series DSP |
H.264E video compression and JPEG image capture |
15fps at 3.0M(2048x1536) and 25/30fps at 1080P resolution |
Dual encoding streams supported |
Support ICR true Day/Night |
Built-in 3.3-12mm/F1.6 CS Auto Iris lens |
Built-in high-performance IR LEDs(30~60 ft) |
Support Alarm I/O, RS485 interface |
Support up to 32GB Micro SD card for local storage |
Support DC12V/AC24V dual power supply, POE |
IK10-rated Vandal-proof & IP66 Waterproof |
Built-in web server, NVR, ICRSS & CMS |
Specifications
Model |
ICIP-3000DV-IR |
General |
Processor |
TI DaVinci Series DSP |
Operating System |
Embedded LINUX |
Resource |
Simultaneous remote monitoring, local recording and remote control |
User Interface |
WEB, CMS(DSS/ PSS), ICRSS, NVR |
Camera |
Image Sensor |
1/2.8" 3.0 Megapixel SONY progressive scan Exmor CMOS |
Effective Pixels |
2096(H)x1561(V) |
Electronic Shutter |
Auto/Manual, 1/60~1/10000s |
Mini. Illumination |
0.2LUX/F1.6(Color), 0.01LUX/F1.6(B/W), 0LUX(IR on) |
Signal Noise Ratio |
>50dB |
Gain Control |
Auto/Manual |
White Balance |
Auto/Manual |
Day/Night |
ICR |
Lens |
3.3-12mm@F1.4 |
Video |
Video Compression |
H.264E/MJPEG |
Image Resolution |
3.0M(2048x1536)/1080P(1920x1080)/720P(1280x720)/D1(704x480) / CIF(352x240)/VGA(640x480) |
Encoding Speed |
Main Stream: 3.0M(1~20fps),1080P/720P/ D1/CIF/ VGA(1~30fps) |
|
Extra Stream: D1/CIF (1~30fps) |
Bit Rate |
160K~8Mbps |
Snapshot |
Fastest 1fps JPEG capture |
Video Format |
NTSC |
Analogue Video Output |
1 channel BNC(1.0Vp-p, 75Ω) |
Audio |
Audio Compression |
G.711a / G.711u / PCM |
Bit Rate |
64kbps/128kbps |
Input |
1 channel RCA |
Output |
1 channel RCA |
Network |
Ethernet |
RJ-45 (10/100Base-T) |
Network Functions |
HTTP,TCP/IP,ARP,IGMP,ICMP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP, DNS,DDNS,PPPOE,UPNP,NTP,Bonjour,SNMP |
Remote Operation |
Monitor, PTZ control, Playback, System setting, File download, Log information, Maintenance & Upgrade |
Auxiliary Interface |
MicroSD Card |
Max 32GB, local storage |
Alarm |
2 Input / 1 Output |
Environmental |
Power Supply |
DC12V/AC24V, PoE |
Power Consumption |
590mA 12VDC / 300 24VAC |
IR LEDs |
30~60 ft (10~20 m) |
Ingress Protection |
IK10 & IP66 |
Operating Environment |
-14°F~140°F / -25°C~+60°C, 10%~90% |
Dimensions |
Φ6.3" x 4.65 / 160mm(Φ) x 118.5mm(H) |
Weight |
2.6lb/1.25kg |
