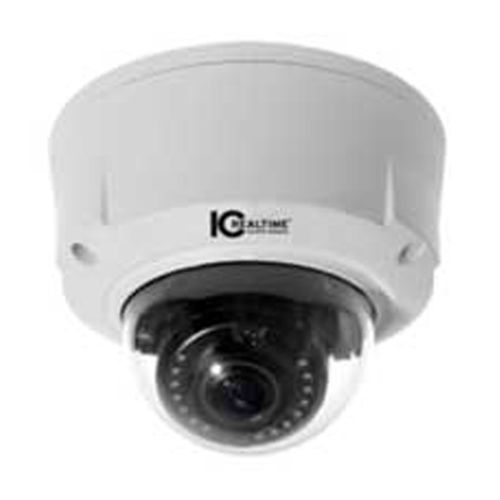

1. 3Megapixel 2.8-12mm VF WDR HD Vandal-proof IR Network Dome Camera
1.3 Megapixel Dome Style Camera works seemlessly with IC Realtime NVRs, Hybrid DVRs and Management Software.
Features
1.3Megapixel WDR HD Vandal-proof IR Network Dome Camera |
H.264 & MJPEG dual-stream encoding |
Max 25/30fps@1.3M(1280x960)&25/30fps@720P(1280x720) |
WDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC |
Multiple network monitoring: Web viewer, CMS(ICRSS/PSS) |
2.8~12mm varifocal lens |
Specifications
Camera |
Image Sensor |
1/3” 1.3Megapixel Aptina CMOS |
Effective Pixels |
1280(H)x960(V) |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/4~1/10000 |
Min. Illumination |
0.1lux/F1.4(color),0.005Lux/F1.4(B/W),0Lux(IR on) |
S/N Ratio |
>50dB |
Video Output |
1 channel BNC(1.0Vp-p, 75Ω) |
Camera Features |
Max. IR LEDs Length |
60FT |
Day/Night |
Auto(ICR)/Color/B/W |
Backlight Compensation |
Off/BLC/HLC/WDR(128dB) |
White Balance |
AUTO |
Gain Control |
Auto/Manual |
Noise Reduction |
2D |
Privacy Masking |
Up to 4 areas |
Lens |
Focal Length |
2.8~12mm |
Max Aperture |
F1.4 |
Focus Control |
Manual |
Angle of View |
H: 92°(Wide)~27.2°(Tele) |
Lens Type |
Manual/Auto Iris (DC) |
Mount Type |
Board-in Type |
Video |
Compression |
H.264 / MJPEG |
Resolution |
CIF(352x288) / 1.3M(1280x960) / 720P(1280x720) / D1(704x480) / CIF(352x240) / |
Frame Rate |
Main Stream: 1.3M/720P(1 ~ 25/30fps) |
Sub Stream: D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps |
Audio |
Compression |
G.711a / G.711u (64kbps)/ PCM(128kbps) |
Interface |
1/1 channel In/Out |
Network |
Ethernet |
RJ-45 (10/100Base-T) |
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
ONVIF |
ONVIF Ver. 2.0 |
Max. User Access |
10 users |
Smart Phone |
iPhone, iPad, Android, Windows Phone |
Auxiliary Interface |
Memory Slot |
Micro SD, Max 32GB |
Alarm |
1/1 channel In/Out |
General |
Power Supply |
DC12V, PoE(802.3af) |
Power Consumption |
<8W |
Working Environment |
-14°F~140°F / -25°C~+60°C, 10%~90% |
Protection Level |
IK10 & IP66 |
Dimensions |
Φ5.94"x4.68mm ~ Φ151x119mm |
Weight |
2.31lb ~ 1.05kg |
