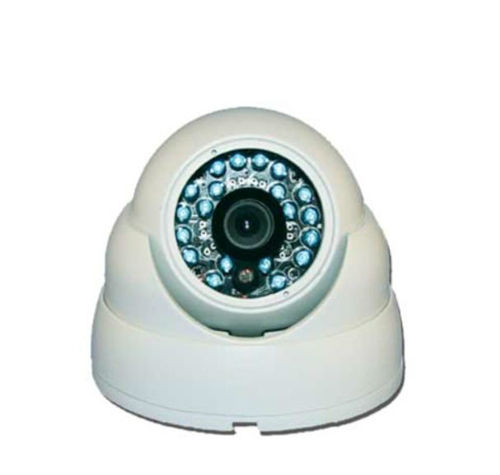

600TVL Indoor/Outdoor Vandal Proof IR Dome Camera
The ICR 200 is an indoor/outdoor vandal proof IR dome camera. Its small size allows for an easy fit for all installs. It also features a flat glass front and blue long range LEDs.
The flat glass does not allow any IR reflection to come back into the lens (the most common complaint among IR domes) and its long rang LEDs illuminate 50 feet in zero light.
- 1/3" SONY Super HAD CCD |
- 600 TV Lines |
- IP-55 Waterproof Standar |
- Vandal Proof |
- Flat front glass design |
- Up to 50 feet IR |
- Build-in 3.6mm Fixed Lens |
Imager / Electrical |
Image Sensor |
1/3" Sony Super HAD CCD |
H.Resolution |
600 TVL |
TV System |
NTSC / PAL |
Sync |
Internal |
Min Illumination |
0 Lux |
White Balance |
Auto 3200~10,000 K |
Gain Control |
AUTO |
S/N Ratio |
>50dB |
Electronic Shutter Speed |
1/50~1/12,000 second |
Video Out |
Composite output BNC (1.0V p-p, 75odm) |
Gamma correction |
r = 0.45 |
Lens |
3.6mm |
IR Range |
50ft IR |
Power / Physical / Environmental |
Power |
210mA 12VDC |
Operating Temperature |
14˚F ~ 122˚F (-10˚C ~ +50˚C) |
Operating Humidity |
Dimensions |
2.76" (70mm) Diameter x 3.70" (94mm) Height |
Weight |
1.06lb or 17.04oz or 483g |
