650TVL EFFIO 2-3DNR Box CCD Camera

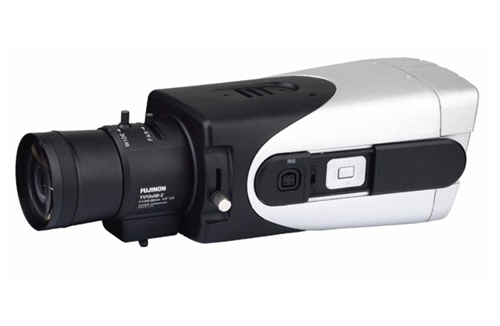

IC Realtime has recently developed the new EFFIO™ DSP line of cameras. The XL8 (CCD Box Style) camera, utilize Sony's new EFFIO chipset capable of achieving 700TVL horizontal lines and 960 horizontal pixels @ 18MHz. This represents the latest technology in camera development in manufacturing today.
Color reproduction is enhanced through the cameras DSP chips. The 3DNR feature produces un-blurred recorded videos of moving objects.
XL8 camera has dual stage Wide Dynamic Range (WDR) cameras with full OSD, RS485, True Day/Night function. The cameras are capable of operating at a low lux level of 0.0001. S/N ratio.
The XL-8 has a sensitivity improvement of a minimum of +4dB, a significant improvement when compared to the current HAD technology sensors.
- 1/3"" SONY 960H WD Double Scan CCD II |
- Effective Pixels: 960(H) X 494(V) |
- True ICR Mechanical Day/Night feature |
- 650TV Lines in Day Mode / 700TV Lines Night Mode |
- WDR Mode (dual stage for automatic disabling at night time) |
- 2D/3D DNR noise reduction |
- 0.2 Lux at F1.2 / 0.0001 Lux at F1.2 (DSS on) |
- Motion Detection |
- Face Detection |
- Full OSD Menu accessible via RS-485 or on camera buttons |
- Back Focus Function for easy set up |
- 4 Privacy Zones |
- Camera Titles |
- Mirror/Reverse/Flip image mode |
- RS485 connection for remote programming |
- CS and C mount Lens Support |
- Dual Voltage 12VDC / 24VAC |
Imager / Electrical |
Image Sensor |
1/3"" Sony Double Scan CCD |
Resolution |
Color = 650 TV Line / Black & White = 700+ TV Line |
Effective Pixels |
NTSC = 768 (H) x 494 (V) PAL = 752 (H) x 582 (V) |
Synchronization |
Internal / Line Lock |
Scanning System |
2:1 Interlace |
Video Output |
1.0Vp-p Composite. 75 Ohms |
S/N Ratio |
more than 52 dB (AGC off) |
Min Illumination |
0.0001 Lux (F1.2) |
Lens |
C/CS Mount (Manual / DC / Video) |
True Day / Night |
With mechanical filter change ( a blue filter built-in ) |
OSD Menu Options |
WDR |
OFF / WDR1 / WDR2 |
2DNR / 3DNR |
2DNR : OFF / 0~6, 3DNR : OFF / 0~31 |
White Balance |
ATW / Push Lock / Hold / User selectable ( Push : 1,800K~10,500K ) |
Gain Control |
OFF 12dB / 18dB / 24dB / 30dB / 36dB / 42dB / 44dB selectable |
Shutter Speed |
NTSC = 1 / 60sec ~ 1 / 10,000 PAL = 1 / 50sec ~ 1 / 10,000 |
Digital Slow Shutter |
OFF / 2~160x (DSS) |
Privacy Masking |
OFF / Mosiac / Color (4 programmable zones) |
Digital Zoom |
OFF / 1.5x / 2x / 3x (Digital Pan / Tilt) |
Motion Detect |
OFF / On ( 4 Programmable zones ) |
Face Detection |
OFF / On ( 4 face detections ) |
Power / Physical / Environmental |
Power |
12 VDC (230mA) / 24 VAC (130mA) |
Operating Temp |
14˚F ~ 122˚F ( -10˚C ~ +50˚C ) |
Humidity |
Within 90% RH |
Dimensions |
2.44"" (62mm) Width x 2.28"" (58mm) Height x 5.51"" (140mm) Length |
Weight |
1.10lb or 17.64oz or 500g |
