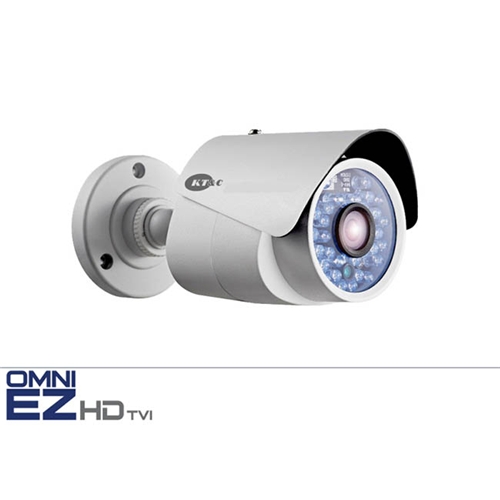

KEZ-b1BR4IR 720p HD-TVI Mini Bullet
-
HD resolution of 720p30 for amazing image quality and useful digital zoom
-
Twice the detail (pixels) compared with 960H/WD1 analog, and 2.7X the detail of traditional analog
-
Operation over ‘almost any’ wire
- Up to 1500 feet on standard RG59 coax; longer distances on RG6
- Up to 500’ on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).
-
1/3” progressive scan CMOS sensor with .01 lux native light sensitivity
-
True Day/Night zero light operating range of 66 feet or more (depending on scene reflectivity) from 24 IR LEDs
-
Smart IR automatic exposure level adjust to deliver properly exposed images despite reflections and bright spots
-
Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting
-
Your choice of standard 3.6mm lens or optional 2.8mm and 6mm lenses to capture the desired field of view
-
12VDC operation with low current draw
-
IP66weather resistant, vandal resistant construction
-
Extreme operating temperature range of -40°F~140°F
- Compact size for unobtrusive surveillance
- KEZ-b1BR3IR (2.8mm)
KEZ-b1BR4IR (3.6mm)
Specfications
| Imaging Device |
1/3"" Progressive Scan CMOS |
| Video Format |
720p30 HD-TVI |
| Picture Elements |
1280 (H) x 720 (V) |
| Horizontal Resolution |
More than 1,000 HTVL |
| Sensitivity |
0 lux IR LED on; .01 lux @ F1.2 (AGC On) |
| Lens Type |
Fixed focal length 3.6mm nominal; optional 2.8mm, 6mm) |
| Angle of view |
76.9° (3.6mm); 99.7° (2.8mm); 50.1° (6mm) |
| IR LED |
24 LEDs, 850nm |
| IR Range* |
66’ (*As with all IR cameras, IR range will vary based on scene IR reflectivity and illumination) |
| Smart IR Exposure Adjust |
Internally controlled; active when IR enabled |
| Day & Night |
Auto True D/N with motorized ICR, controlled by photo sensor |
| S/N Ratio |
Over 52dB (NR On) |
| Sync. Mode |
Internal |
| Auto Gain Control |
0~15 |
| Electronic Shutter |
Auto: 1/30 ~ 1/50,000 second |
| White Balance |
AWB |
| Color Correction |
Nominal Gamma 0.45 |
| 2D-DNR |
On |
| Video Output Connector Type |
BNC 75Ω |
| Power Source |
12VDC |
| Power Consumption |
12VDC: 333mA IR LED On |
| Operating Temperature |
-40 °F ~ 140 °F (-40 °C ~ 60 °C) |
| Environmental |
IP66 weather resistant |
| Mechanical |
Vandal resistant construction |
| Positioning |
3-axis flexible positioning for wall or ceiling mounting Pan: 0~360° Tilt: 0~90° Rotate: 0~360° |
| Dimensions |
Ø2.76” × 5.89” [Ø70 x 149.5mm] |
| Weight |
.79 lbs./360 g |
| Certifications |
CE / FCC / RoHS |
