The Narrowest Bezel LG Video Wall
55" class (54.64” diagonal) Super-Narrow 3.5mm Bezel Premium Display
- SUPER NARROW BEZEL
- EVOLVED DAISY-CHAIN PERFORMANCE
- SUPERSIGN V FOR DYNAMIC LAYOUT / FREE SUPERSIGN C FOR ADVANCED COLOR ADJUSTMENT AND REMOTE MONITOR & CONTROL
- 700 NIT DISPLAY - 24/7 OPERATION
SUPER NARROW BEZEL
47" super narrow bezel 4.9mm and 55" super narrow bezel 3.5mm video wall displays create visually stunning digital wall that is easily installed, maintained and managed.

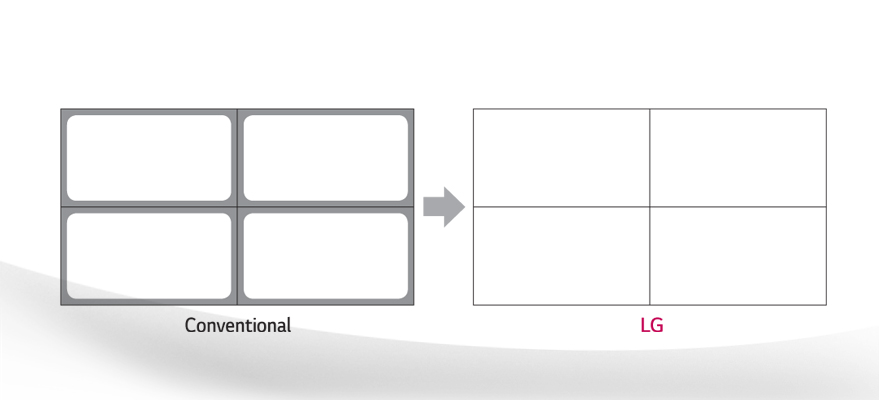

HIGHER BRIGHTNESS UNIFORMITY
Brightness uniformity 90% ensures high quality image delivered across displays.

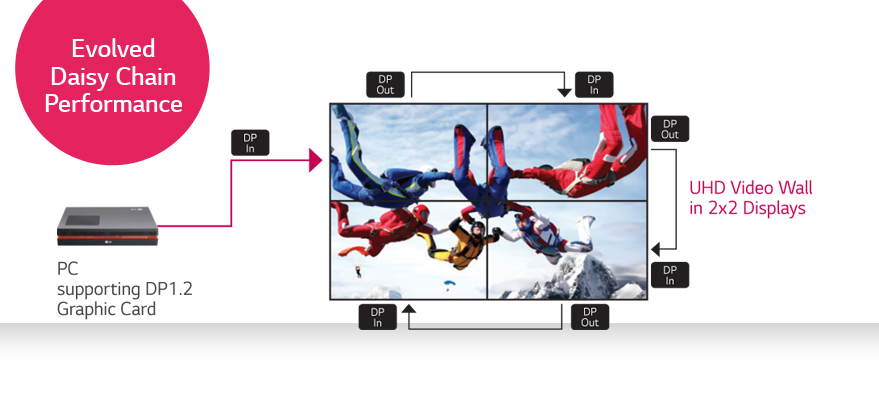

EVOLVED DAISY-CHAIN PERFORMANCE
DisplayPort 1.2 connectors enable UHD content playback on 4K Video Wall in 2x2 displays (available on LV75A/LV77A)

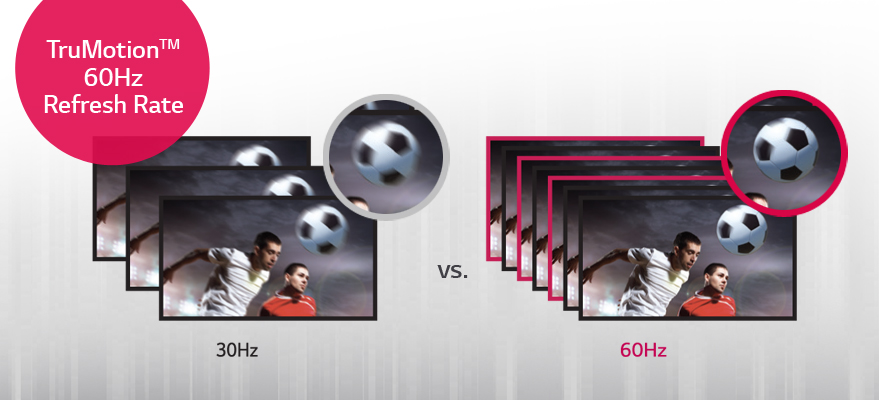

VIVID IMAGERY VIEWING
TruMotion™ 60Hz Refresh Rate drastically reduces motion blur and judder ensuring vivid image details.
SUPERSIGN VS FOR DYNAMIC LAYOUT
• Rotate, cut and edit content according to a defined layout
• Flexible editing of content to match various layouts is possible
• Scheduled-based content playback based on time and day
• Distribute content to media players as well
FREE SUPERSIGN C FOR ADVANCED COLOR ADJUSTMENT
- Intuitive GUI in SuperSign C S/W allows to measure and adjust color and brightness instantly on display
- Automatic white balancing of a video wall display using a sensor

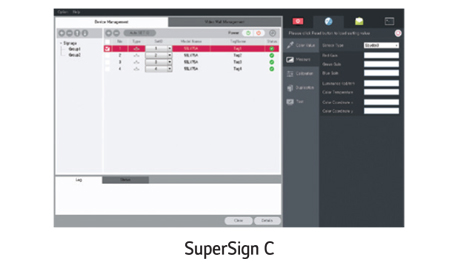

FREE SUPERSIGN C FOR FOR REMOTE MONITOR AND CONTROL
Intuitive GUI-based Remote Monitoring & Control via the networks and RS232 connection feature in SuperSign C S/W.
SHINE-OUT
Perfect fit for window display by reflecting away ambient light for best image visibility and clearer display in bright lighting environment.
PANEL Model 55LV75A-7B 55LV77A-7B
Panel Size 55" class (54.64" measured diagonally)
Panel Type IPS
Aspect Ratio 16:9
Native Resolution 1920 x 1080 (FHD)
Pixels(H x V x 3) 6220800
Brightness 500 cd/m2 700 cd/m2
Contrast Ratio (Typ.) 1,400:1
Dynamic CR (DCR) 500,000:1
Color Gamut 72%
Viewing Angle 178°/178°
Color Depth 1.06 Billion
Response Time 12ms (G to G)
Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 10%)
Orientation Portrait & Landscape
VIDEO (PC) Max Input Resolution 1920 X 1080@ 60Hz(RGB, HDMI, DVI-D, Display Port)
Recommended
Resolution 1920 X 1080@ 60Hz(RGB, HDMI, DVI-D, Display Port)
H-Scanning Frequency 30 ~ 83 kHz (RGB, HDMI, DVI-D, Display Port)
V-Scanning Frequency 56Hz ~ 75Hz (RGB), 56Hz ~ 60Hz (HDMI, DVI-D, Display Port)
Pixel Frequency 148.5MHz (RGB, HDMI, DVI-D, Display Port)
Sync Compatability Separate / Composite / Digital
Video Input RGB, HDMI, DVI-D, Display Port, AV, Component
Picture Mode Vivid, Standard , Cinema, Sports, Game
Color Temperature Warm, Medium , Cool
SIGNAL
(INPUT)
Digital DVI-D (1), HDMI (1), Display Port (1) with HDCP for all input
Analog RGB (1), Shared Component (1), AV (1)
Audio PC Audio In (1)
External Control RS232C (1), RJ45 (1), IR Receiver (1)
USB USB (1)
SIGNAL
(OUTPUT) Digital Display Port (1)
Audio Audio Out (1)
External Control RS232C (1)
CABINET Model 55LV75A-7B 55LV77A-7B
Color Black
Bezel Width 2.25mm (left/top) / 1.25mm(right/bottom)
Monitor Dimensions
(W x H x D)
47.8” x 27.0” x 3.5”
Weight (head) 50.7 Ibs 51.1 Ibs
Carton Dimensions
(W x H x D) 53.3” x 33.5” x 10.0”
Packed Weight 66.8 Ibs 67.2 Ibs
Handle Yes
VESA™ Standard
Mount Interface
600mm x 400mm
SPECIAL
FEATURES
Temperature Sensor Yes
Tile Mode Yes, Up to 15 x 15 (Natural mode)
Source Selection RGB / DVI-D / HDMI / Component / AV / Display Port / USB
Brightness/Contrast/
Backlight Yes
Position/Size Yes
Auto Config/Phase Yes
ISM Method Normal, Orbiter, inversion, White wash
Advanced Dynamic Contrast, Dynamic Color, Clear White, Skin Color, Noise Reduction,
Digital Noise Reduction, Gamma, Black Level
Time Clock, On/off Time, Sleep Timer, Power on Delay, Auto off,
Automatic standby
Information Model/Type, S/W Version, Serial Number, IP Address, Mac
address, Homepage
Input Label Yes
Auto Power/Source
Memory Yes
DPM Select Yes
Energy Saving Yes, Off / Minimum / Medium / Maximum / Screen Off
Smart Energy Saving Yes
File Play with USB Yes
PIP/PBP Yes
ENVIRONMENT
CONDITIONS
Operation
Temperature 0°C~40°C
Operation Humidity 10%~80%
POWER Power Supply 100–240V~, 50/60Hz
Power Type Built-in Power
Power Consumption
Normal On (Typ.) 160W 230W
Power Save/Sleep
Mode (Max) 90W 120W
DPM 0.7W
Power Off 0.5W
STANDARD
CERTIFICATIONS
Safety UL / cUL / CB / TUV / KC
EMC FCC Class "B" / CE / KCC
ErP / Energy Star Yes / Yes(Energy Star 6.0)
WARRANTY 3-Year Limited Warranty (Parts/Labor/Backlight)
UPC 7 19192 19516 5 7 19192 19517 2
MEDIA PLAYER
COMPATIBILITY
External Media Player
Attatchable Yes
SOFTWARE
COMPATIBILITY
SuperSign Elite-w lite Yes, Editing, Scheduling, Distribution
ACCESSORIES Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable,Tiling
Guide, Screw
