AUDIO MONITORING SYSTEM

ASK-4 KIT #101

A single zone audio monitoring system, designed for audio monitoring and interfacing with a DVR or VCR. The desk top base unit has a 3" speaker for monitoring live audio as well as playback. Contains mute switch to mute both live and playback audio. The low impedance electret condenser microphone is designed for ceiling mount and can pick up normal sounds approximately 15' away or within a 30' diameter circle. Distance between microphone and base station can be up to 1,000 ft.

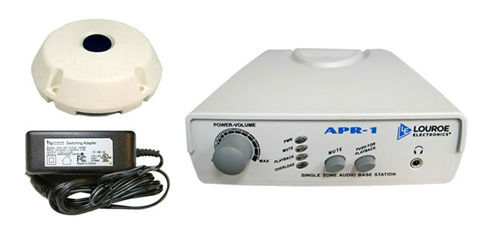

Kit Contains:
Verifact A Verifact Microphone
APR-1 Model APR-1 Desk Top Base Station
AD-1 12 Vdc Power Supply
Dual RCA cable for connection to DVR/VCR

APR-1 can be equipped with RM-1935 SER 19" rack mount assembly. Request RM-1935-APR assembly.
