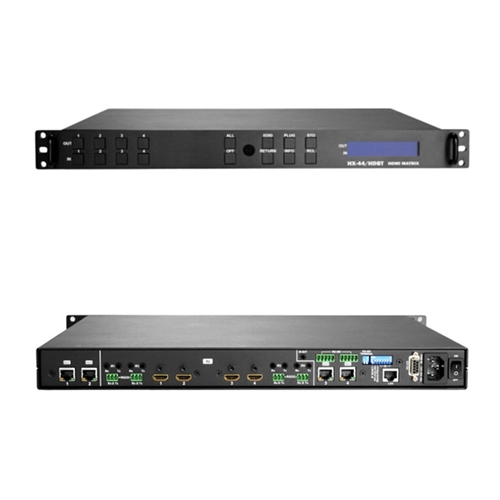

ZIGEN HX-44/HDBT-70M 4x4 HDBaseT HDMI Matrix Switch Extenders up to 70m - 4K, RS232/IR/Ethernet Control, EDID Management

DESCRIPTION

The ZIGEN HX-44/HDBT-70M HDBaseT HDMI Matrix Switch is a high-performance matrix switch designed for applications where routing of high-resolution digital video signals are required.

Specs

• HDCP Compliant
• EDID Management
• Centralized Control Upon 32 Series Connections via RS-485
• Supports High Definition Audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD MA)
• IR Pass-Through Supports All IN and OUT Ports
• IR Pass-Through Supports All Kinds of IR Frequency Bands
• IR Pass-Through Supports Duplex Transmission Between IN and OUT Ports
• IR Pass-Through Switch is Based on HDMI Switched by Controller
• Supports IR Remote Control
• Supports IR Mini-Controller to Select the Input Channel Through Output Configuration
• Supports RS-232 Control
• Supports RS-485 Serial Control
• Supports Ethernet Control
• Internal Universal Power Supply
• 1U Rack Space
• Input Connector: HDMI Type A x 4
• Output Connector: RJ45 x 4
• RS-232 Connector: DB9 Female
• LAN Connector: RJ45
• RS-485 Connector: 2
• 2 Pins Dip Switcher
• 8 Pins Dip Switcher
• LCD Module
• Power: 100VAC~240VAC, 50/60Hz, Internal
• Housing: Black Aluminum
• Mounting: Rack Mountable
• Weight: 3550g
• Dimensions: 332x482x43mm (Full Rack Wide Without Grips)
• HDMI Cable Distance: At Least 10 Meters
• Cat5E Cable Distance: 100 Meters Max
• Baud Rate: 9600 bps; 8 data bits, 1 stop bit, no parity
• Ethernet Protocol: HTTP, DHCP, TCP/IP, ICMP (ping)
• Program Control: Web Server, AVM Application
• Serial Control Port: RS-232 9 Pin Female D Type Connector; RS-485 1x5 Pole Captive Screw
• Control Sequence: Matrix
• Remote Control: Remote Controller, IR Receiver, IR Blaster
• Web Server: LAN, RJ45

Package Includes

• (1) HDMI Matrix Switch
• (1) RS-232 Communication Connected Cable
• (1) Power Cord
• (1) IR Receiver Cable
• (1) lAN Line
• (2) Female 1x5 Pole Captive Screw Socket
• (1) Matrix Switch Remote Control
• (2) AAA Batteries
• (1) AV Matrix Software CD
• (1) User Manual
