MULTIPLE SENSOR NETWORK CAMERA
12MP 180 PANORAMIC VIEW 1P66

MS8391EV

he VIVOTEK MS8391-EV is designed with multiple sensors providing higher resolution, maximizing the field of view and reducing the total number of cameras required, thereby saving on the installation costs. Featuring 4 x 3MP CMOS sensors, the multiple sensor network camera can monitor full horizontal views and deliver high-quality comprehensive coverage, making it an ideal outdoor surveillance solution with sharper images for more details. Covering a wide angle of 180 degrees, the MS8391-EV provides complete video security with no dead angles.

By having Multiple Sensors with 12-Megapixel resolution, users can ePTZ across the entire panoramic image for detailed views. Employing VIVOTEK’s Smart Stream II technology, the MS8391-EV can reduce both bandwidth and storage consumption by up to 50% while maintaining high standards of image quality.

Additionally, as a professional day/night camera, it adopts a Smart IR technology which prevents overexposure and provides noise reduction to adjust the IR lighting intensity instantaneously based on the changes of light in the ambient environment. Finally, the MS8391-EV is armed with a robust IP66 and IK10-rated housing to enable the multisensor camera to withstand rain and dust as well as to protect against vandalism or tampering.

• 12-Megapixel Resolution
• 180° Panoramic View
• 7 fps @ 7552x1416
• Video Alignment to Have a Seamless Picture
• Smart IR Technology to Avoid Overexposure
• Built-in IR Illuminators, Effective up to 30 Meters
• Smart Stream II to Optimize Bandwidth Efficiency
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• -50°C ~ 60°C Wide Temperature Range for Extreme Weather Conditions

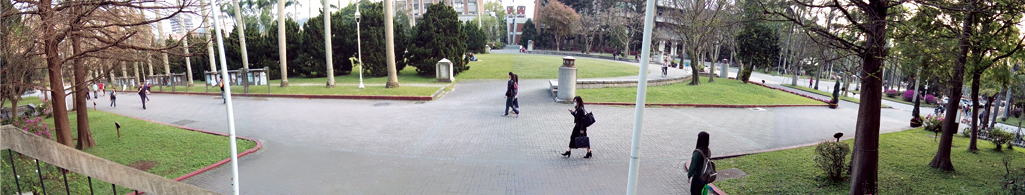

Day View

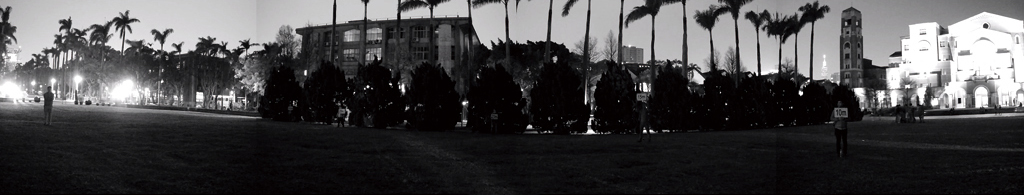

Night View (IR Off)

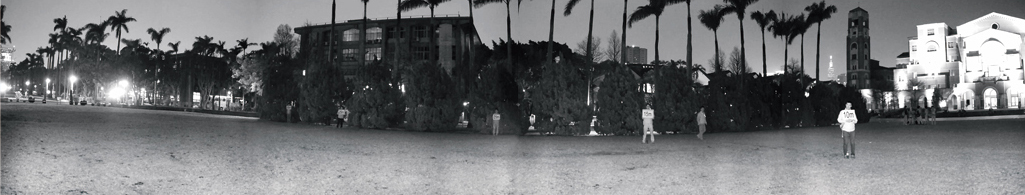

Night View (IR On)

Specifications
