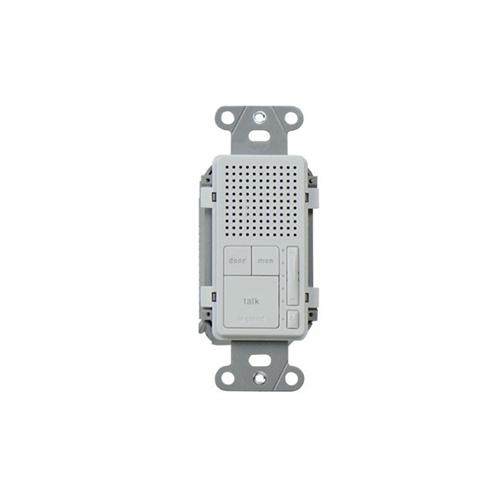

Broadcast Intercom Room Station
Providing easy and accessible whole-home communication, the Broadcast Intercom Room Station integrates with the Intuity automation system to offer absolute convenience and enhanced peace of mind. Communicating with all intercom stations throughout the home, the IC7000-WH also allows for answering the front door from any room of the house as well as features room monitoring - ideal for keeping an ear on infants or elderly parents
features & benefits
- Compact, single gang intercom unit providing effortless, simultaneous communication between rooms
- Integrates with the Intuity Home Intelligence system
- Features hard-buttons for monitoring and mute functions
- Simple RJ45 plug design for easy installation and troubleshooting
- Available in Light Almond, Nickel
specifications
General Info
- Cable Type: Cat 5e, or Cat 6, or better
- Color: White
- Available Colors: White, Light Almond, Nickel
- Size: 3.38" x 4.38" x 7.125"
- Typical Applications: Part of the Selective Call Intercom System
- Type: Residential
- Housing Material: ABS Plasitc / Steel
- Special Features: Hi-resolution LCD display, supports up to 3 simultaneous conversations
Dimensions
- Height Metric: 85.85mm
- Height (U S): 3.38"
- Length (U S): 7.125"
- Length Metric: 181mm
- Width Metric: 111.25mm
- Width (U S): 4.38"
- Weight: 0.45 lbs / 0.204 kg
- Display: 1.47" diagonal 16-bit color LCD
- Conferencing: 3 lines
Technical Information
- Compatible Power Supplies: 24 VDC external power supply
- Current Max: 0.25mA max.
- Humidity: Up to 90% Relative Humidity (non-condensing)
- Jack Connectors: RJ45
- Mounting: Mounts in a standard electrical wall box or mud ring
- Operating Temperature Celsius: 0°C ~ 55°C
- Operating Temperature Fahrenheit: 32°F ~ 131°F
- Rated Volts: +24 VDC (+/- 1.25 VDC)
- Regulatory Approvals: FCC Part B, RoHS
