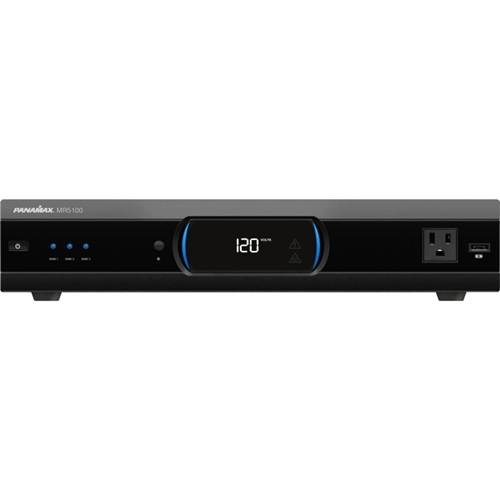

MR5100
Panamax’s MR Family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.
The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.
FEATURES:
- 11 Protected & Filtered Power outlets
- Exclusive Auotmatic Voltage Monitoring (AVM)
- Protect or Disconect Technology
- Power Sequencing (1 Always on bank, 1 Switched bank, 1 Delayed HIGH Current bank)
- USB Charging
- Linear LEVEL 4 Filtration (3 Total Isolated banks) with dedicated HIGH current outlet bank (4 outlets)
- Antenna, Cable, or Satellite, LAN and TELCO signal protection
- 8FT power cable with low profile plug
- Rack Mounting Kit Included
AC Protection
| Voltage Protection Rating (UL 1449 3rd Edition, 3,000A) |
330V |
| Under-voltage shutoff |
95V ±2V |
| Thermal Fusing |
Yes |
| Single Pulse Energy Dissipation |
2025 Joules |
| Response Time |
< 1ns |
| Protection Modes |
L-N, L-G, N-G |
| Protect or Disconnect Circuitry |
Yes |
| Peak Impulse Current |
52,000 A |
| Over-voltage shutoff |
135V ±2V |
| Maximum Current Rating |
15A |
| Line Voltage |
120V, 50/60Hz |
| Initial Clamping Level |
200V Peak, 141VRMS |
| Automatic Voltage Monitoring Circuit |
Yes |
Linear Level 4 Noise Filtration
Bank 1 & 2
-65dB min. @ 100kHz
-65dB min. @ 250kHz
-45dB min. @ 500kHz
Max filtration: -80dB @ 150kHz
Bank 3 - High Current, Low Impedance
-50dB min. @ 100kHz
-60dB min. @ 250kHz
-45dB min. @ 500kHz
Max filtration: -63dB @ 250kHz
Bank-to-Bank (1 vs. 2) Noise Isolation
-60dB min. @ 100kHz
-65dB min. @ 250kHz
-50dB min. @ 500kHz
Max filtration: -75dB @ 125kHz |
General
| Weight |
13.5 lbs. |
| Rack Ears |
Included |
| Dimensions |
12”l x 17”w x 3.5”h, 4”h with feet |
LAN Protection
| Wires Protected |
8-Wires |
| Jacks |
RJ-45 |
| Compatibility |
10/100/1000bT |
| Clamping Level |
62V ± 6V @ 1 mA |
TEL Protection
| Wires Protected |
2 Wires, 1 Pair (4, 5) |
| Jacks |
RJ-11 |
| Fuseless/Auto-Resetting |
Yes |
| Clamping Level |
260V |
Universal Coax Protection
| Shielded |
Yes |
| Insertion Loss |
< 0.5 dB |
| HD 1080 i/p Ready |
Yes |
| Frequency Range |
0 MHz - 2.2 GHz |
| Connections |
Female "F", Gold Plated |
| Clamping Level |
75V |
| Bidirectional |
Yes |
