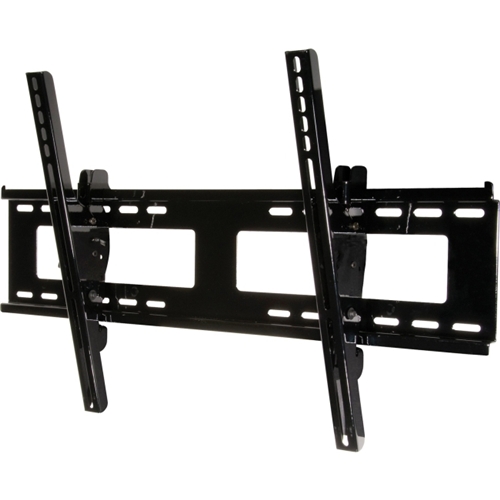

Corrosion Resistant Universal Tilt Wall Mount
For 32" to 55" Flat Panel Displays
Model: EPT650
Peerless-AV’s Outdoor Universal Wall Mount provides a sure way to mount flat panels outdoors with its corrosion resistant E-Coat and stainless steel hardware that is resistant to corrosion when exposed to the elements. In addition to simple installation with its hook-and-hang design, this mount offers tilt functionality while keeping the flat panel display a mere 2.58" from the wall. Tamper-resistant hardware deters theft, offering a peace-of-mind with every installation. For additional security, lock down channels in the brackets are included for optional padlock attachment to wall plate.
Features
- For Indoor/Outdoor use where corrosion protection is needed
- Supports displays with 29.04" W x 17.67" H (738mm W x 449mm H) Mounting Pattern and up to 600 x 400mm VESA® compliant
- +15°/-5° tilt with 5° lock increments
- 8" (203mm) of horizontal display adjustment
- 2.58" (66mm) from the wall
- Double stud mounting with 16", 20" & 24" stud placements
- Security hardware and optional lock down channels to add a pad lock additional security
- Wood, concrete or cinder block mounting hardware included
Specifications
| Minimum to Maximum Screen Size: |
32" to 55" |
| VESA Pattern: |
600 X 400 |
| Mounting Pattern: |
738 X 449mm (29.04 X 17.67") |
| Weight Capacity: |
175lb (79kg) |
| Color: |
Black |
| Finish: |
Powder Coat |
| Security Features: |
Security Hardware |
| Tilt: |
+15 / -5 |
| Distance from Wall: |
2.58" (66mm) |
| Product Dimensions: |
30.75 X 18.5 X 2.58" (781 X 470 X 66mm) |
| Ship Dimensions: |
8.5 x 3.88 x 31.625" (215.9 x 98.6 x 803.3mm) |
| Shipping Weight: |
10.76lb (0kg) |
