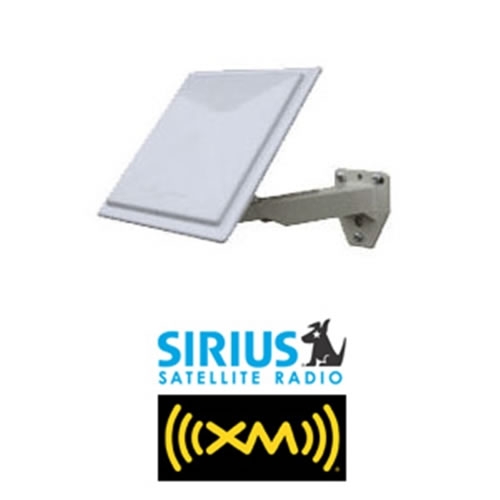

Model: PRO-500
Professional High Gain Antenna System
For Satellite Radio reception in high-end home and commercial installations

• Optimized for interference / multi-path rejection and high gain reception of satellite radio signals
• Mounts to any horizontal or vertical surface via included wall mount bracket
• Includes pole fixture for mounting to any pole up to 1-3/4 “ in diameter
• High gain 12 dBi antenna (5 dB more gain than standard antennas)
• Includes two-stage ultra-high selectivity low-noise amplifier / filter providing over 60 dB out-of- band attenuation
to other RF signals that can interfere with reception
• Antenna amplifier / filter can drive up to 200 feet of standard RG-6 cable (not included). Additional line amps
available for longer runs (Model SBA-1)
• Includes 3- foot F-female to SMB plug adapter cable

Kit Includes:
(1) 12 dBi amplified antenna
(1) Wall mount bracket
(1) Pole mount bracket
(1) 3 ft F-female to SMB-plug adapter cable
(1) Weather boot
(1Lot) Mounting screws and hardware
