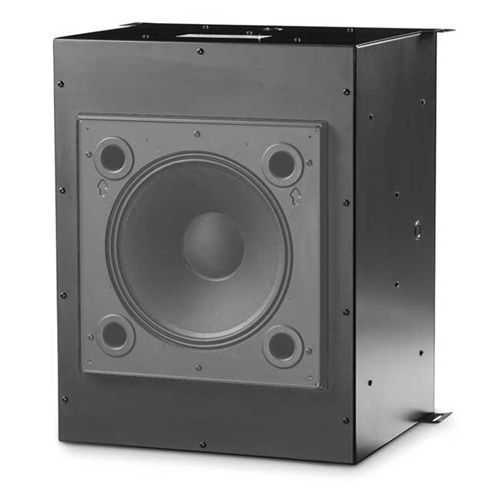

QSC AD-C1200BB Back Box Assembly for AD-C1200 Ceiling Mount Speaker
Acoustically optimized enclosure for the Acoustic Design AD-C1200 ceiling speaker
Specifications
| Enclosure Volume |
AD-C1200BB: 88 L (3.1 ft 3) |
| Connectors |
Back box (AD-C1200BB): ceramic block connector inputs and “through” connectors (rated for 400 W max). Loudspeaker Baffle: Euro-style connectors. |
| Mounting Hardware |
Pre-installed, suspended, back box, four mounting tabs. |
| Loudspeaker Baffle |
Six mounting screws. |
| Weight - Net |
AD-C1200: 25 lb / 11.3 kg
AD-C1200BB: 53 lb / 24 kg
Complete Assembly: 78 lb / 35.3 kg |
| Dimensions (HWD) |
Complete Assembly: 23" x 18" x 15.5" (584 mm x 454 mm x 393 mm) |
|
