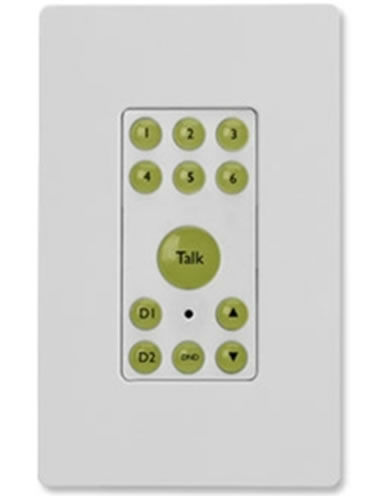

- Description ComPoint’s basic six-zone (only), single-gang keypad offers numeric zone selection, direct selection of door station 1 or 2, “Do Not Disturb,” and user adjustable volume controls.
- Features
- Simple press a button and speak to anyone in the home
- Hands-free reply without having to press the talk key for faster communication
- Efficient single-gang design and CAT-5 standard connectivity enables versatile and faster installations
- Security listen to a zone from anywhere throughout the home providing peace of mind
- Elegant attractive keypad offers elegant solution for any home
- Specifications
- User controls: 6 zone selection/indication keys, talk key, 2 door selection/indication keys, DND selection/indication keys
- Key Backlighting: Installer-selectable amber or green with red indication
- Audio input: Built-in microphone with automatic gain control
- Amplifier: Monaural (for system functions only)
- Min. load impedance: 8 ohms per channel
- Speaker relay: 4-pole double-throw
- Speaker connectors: 2 removable 4-pole screw terminals
- Speaker wire size: Up to 14 AWG
- CAT-5 connector: 110 punch-down block
- Keypad style: Single-gang Decora®
- Available colors: White, almond, bone, black, brown
- Dimensions: 1.875" W x 4.188" H x 2.5" D (4.8 x 10.6 x 6.4 cm)
- Weight: 4.8 oz (136g)
