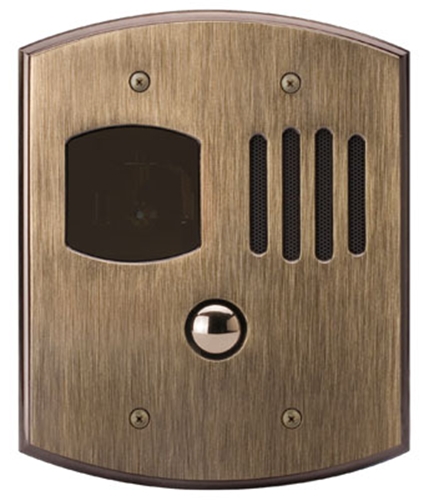

The ISK4 Camera Door Station combines a discreet video camera with doorbell and two-way communication to make your home even more secure. Connected to a television or security monitor, the low-light camera lets you see who’s at the door.
Compatible with the entire line of Russound ComPoint products, the ISK4 provides reliable, high-quality communication with ComPoint keypads inside your house. Each of two Camera Door Stations may have its own distinctive door chime for easy recognition.
Environmentally tested for weather resistance, the ISK4 features a gasketed solid metal cover plate available in antique brass or brushed chrome. A subtle amber backlight makes it easy to find the doorbell button in the dark.
Standard Features
- Wide-angle low-light camera lets you see who is at the door
- A single button press rings the doorbell and allows two-way audio communication between you and your visitor
- Visitor can reply to you without pressing the button again
- Available in two distinctive finishes to fit any style home
- Weather-resistant construction for long life
| Shipping Dimensions |
7.3" (W) x 3.5" (H) x 8.0" (D)
(18.4 x 8.9 x 20.3 cm) |
| Shipping Weight |
1.5 lbs (0.7 kg) |
| Amplifier |
Monaural (for system functions only) |
| Audio Input |
Built-in microphone with automatic gain control |
| Audio Output(s) |
Built-in speaker |
| Camera Resolution |
600 horizontal lines |
| Camera Sensitivity |
0.1 lux minimum illumination |
| CAT-5e Connection |
110 punch-down block |
| Cover Plate |
Weatherproof plated die-cast zinc |
| Doorbell Connector |
2-pole screw terminal |
| Doorbell Contact |
1 A @ 12 VDC |
| Doorbell Wire Size |
Up to 18 AWG (1.024 mm) |
| Power Requirement(s) |
Doorstation: 15 VDC 220 mA maximum (provided from ComPoint hub)
Camera: 12 VDC regulated, 100 mA (use Russound 846C power supply) |
| User Controls |
Call button with amber backlight |
| Video Output(s) |
Composite, 75 ohms unbalanced |
| Volume Control |
Installer-adjustable potentiometer |
