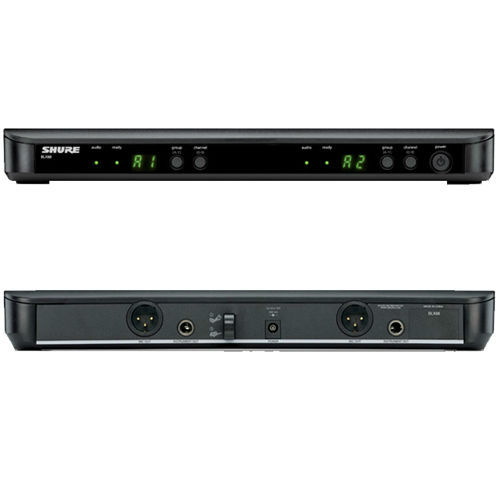

BLX88 Dual Wireless Receiver for PG, SM and Beta Wireless

Features

• Up to 12 compatible systems (region dependent)
• Microprocessor-controlled internal antenna diversity
• One touch QuickScan locates the best open
• Frequency
• ¼" and XLR audio outputs
• Two color audio status indicator LED
  • Green: Normal audio levels
  • Red: Excessive audio levels (overload/clipping)

Specifications

• Power supply: PS23
• Maximum output level: XLR connector: –27 dBV (into 100 kΩ load) 6.35 mm (1/4”) connector: –13 dBV (into 100 kΩ load) mW
• Further specs:
  • Output Impedance
    • - XLR connector: 200 Ω
    • - 6.35 mm (1/4") connector: 50 Ω
  • Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
    • - XLR connector –27 dBV (into 100 kΩ load)
    • - 6.35 mm (1/4") connector –13 dBV (into 100 kΩ load)
  • RF Sensitivity 105 dBm for 12 dB SINAD, typical
  • Image Rejection: >50 dB, typical
  • Dimensions: 40 mm X 388 mm X 116 mm (H x W x D)
  • Weight: BLX88 429 g
  • Housing: Molded ABS
  • Power Requirements: 12–15 V DC @ 320 mA, supplied by external power supply (tip positive)
