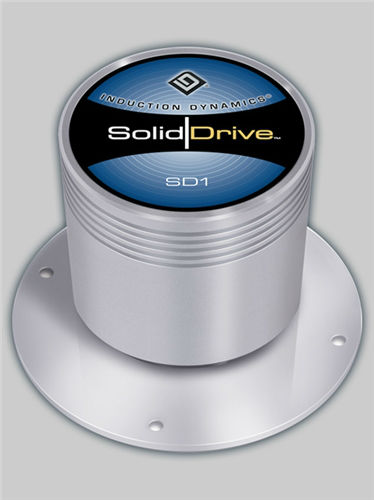

Solid Drive SD1 (Titanium)

Shown in Chrome

The SD1 mounts “in-wall” and “in-ceiling” by attaching directly to the drywall with a patented balanced cantilever spring bracket. The bracket spans the studs, providing strength, stability and vibration-free operation. Available in a chrome or titanium finish. Note: the Balanced Cantilever Spring Bracket is not included with the SD1 but is required for installation. Multiple bracket widths are available; contact your SolidDrive sales representative for details

Features a 7-year warranty.

Type: Full range transducer
Frequency Response: 60 – 15,000 Hz Nominal w/o EQ
Nominal Impedance: 8 ohms
Recommended Amp Power: 10 – 100 Watts
Max Program Power: 100 Watts, with 100 Hz 12 dB / octave high-pass
Max Continuous Power: 25 Watts
Diameter – housing body: 2.062″ / 52.34 mm
Height – housing body : 2.30″ / 58.6 mm
Diameter mounting foot: 3.50″ / 89 mm
Covered Angle: 120º
Weight: 1.05 lbs. / 0.4725 kg per drive
Shipping Weight: 1.4 lbs.
Shipping Dimensions: 8″ (H) x 8″ (W) x 8″ (D)
Finish: Chrome, Titanium
