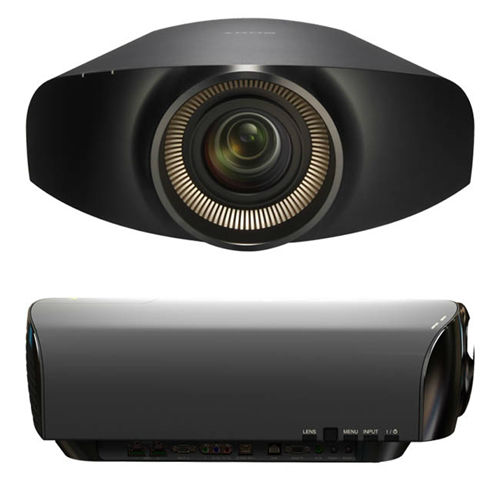

4K Home Theater ES Projector with 4K ARC-F Lens for ultimate picture quality

Experience Sony’s most immersive, awe-inspiring home theater with SXRD™ 4K movie theater projector technology. Delivering greater than four times 1080p resolution, anamorphic 3D, and HD to 4K upscaling, nothing else comes close.

• 4K resolution (4096 x 2160) that’s greater than 4 times 1080p HD
• 1,000,000:1 dynamic contrast ratio with SXRD technology
• Recommended for screens up to a 200"
• Enjoy your favorite 1080p HD movies and shows in 4K
• Brightness of 2,000 ANSI lumens

SPECIFICATIONS

• 3D Features

  • Simulated 3D : Yes
  • 3D Glasses Brightness Adjustment : 2 Modes, Standard and High
  • Transmitter : Built-in with the option for external
  • Format(s) : Frame Packing/ Side by Side/ Over-Under/Simulated 3D/ESPN 3D format/ 720p / 60 SBS
  • Digitally Driven Panel : Yes
  • Effect Adjustment(s) : Yes
  • Signal : (HDMI inputs only) 1080:24p/60p/50p/60i/50i ; 720:60p/50p
  • 2D to 3D Conversion : Yes

  Convenience Features

  • Power Save Mode : Yes
  • Auto Input Search : Yes
  • IR Receiver : Front & Rear, Front, Rear
  • Test Pattern : Yes
  • Image Flip : HV, H, V, Off
  • BRAVIA® Sync™ : Yes
  • Remote Control : Yes (RM-PJ22)
  • Multiple Language Display : 15 languages (including English, French, Spanish, German and Chinese)

  Display

  • Screen Size : 60"-200" recommended
  • Display Resolution : 4096 × 2160 (Full 4K)
  • Aspect Ratio : 17:9
  • Native Resolution : 4K - 4096 x 2160

  Display Features

  • Display Technology : SXRD™ Technology

  General

  • Integration Partner : Yes (Control4 Certified, AMX Device Discovery, Crestron Integrated Partner, Savant Partner in Excellence, RTI & URC)
  • Projection Picture Size : 60" to 300" measured diagonally
  • Lens : 4K All Range Crisp Focus (ARC-F)

  General Features

  • Acceptable Computer Signals : fH: 19 to 72 kHz, fV: 48 to 92 Hz, fV: 60 Hz
  • Standby Mode : Yes
  • Information Menu : Horizontal and Vertical frequency display
  • Input A : D-sub 15 Pin, Analog RGB/Component
  • Lens Control : Motorized focus, shift and zoom with servo/memory

  Inputs and Outputs

  • Component Video (Y/Pb/Pr) Input(s) : 2 (Side): 1 (RCAx3), 1 (15 Pin HD)
  • PC Video Input(s) : D-sub 15-pin
  • 3D Sync : 1 (Side) RJ45
  • Remote Network Connection(s) : 1 (Side) RJ-45, 10 base-T/100base-T
  • HDMI™ Connection(s) (Total) : 2 (Side) Digital RGB/Y/Cb(Pb)Cr(Pr) with PC timing support1
  • IR Input(s) : 1 (Side) Mini Jack
  • RS-232C Input(s) : D-sub 9-pin (female)
  • RS232 Control : Yes
  • 12V Trigger Output(s) : Mini Jack - Power On: DC 12V, output impedance: 4.7 kilohms Power Off: 0V (Two, selectable power / anamorphic zoom.)
  • Replacement Lamp : LMP-H330

  Service and Warranty Information

  • Limited Warranty Term : Product Warranty - Limited 3 Years Parts and Labor except the lamp. Lamp Warranty - 90 Days from date of purchase.

  TV System

  • Color System : Auto, NTSC, PAL, SECAM

  Video

  • Contrast Ratio : 1,000,000:1 Dynamic Contrast
  • Video Calibration Settings : 11 Gamma Modes Independent settings for 2D & 3D viewing
  • Deep Color : Yes
  • Picture Modes : 9 modes
  • Brightness : 2000 Lumens

  Video Features

  • Color Space : Supports sRGB (Rec 709), DCI, Adobe RGB
  • Vertical Position : Yes
  • Acceptable Video Signals : 480/60i, 576/50i, 480/60p, 576/50p,720/60p, 720/50p, 1080/60i, 1080/50i The following items are available for HDMI input only: 1080/60p, 1080/50p, 1080/24p,3840 x 2160/24p, 3840 x 2160/25p, 3840 x 2160/30p, 3840 x 2160/60p, 4096 x 2160/24p, 4096 x 2160/60p
  • Video Processing : Optional
  • Wide Mode : Yes
  • Film Mode : Yes
  • 4K resolution upscaling : Yes - 3840 x 2160 (QFHD)
  • Lens Shift Function : Yes 80(v), 30(h)
  • Pixel Alignment : Yes, 0.1 Pixel increments, 153 zones
  • Deep Color : Yes
  • Anamorphic : Yes, lens-less anamorphic via picture position
  • Motionflow™ Technology : Yes (120 Hz with Dark Frame Insertion)
  • 3D Anamorphic : Yes, via picture position or external lens
  • x.v.Color™ Technology : Yes
  • Picture Position : Yes, 5 Modes (including lens-less anamorphic)
  • Title Area Control : Yes

WHATS IN THE BOX

• Remote Control (RM-PJ22)
• Instruction Manual
• AC Cord
• Size AA batteries x 2
• (2) 3D Glasses: TDG-PJ1
