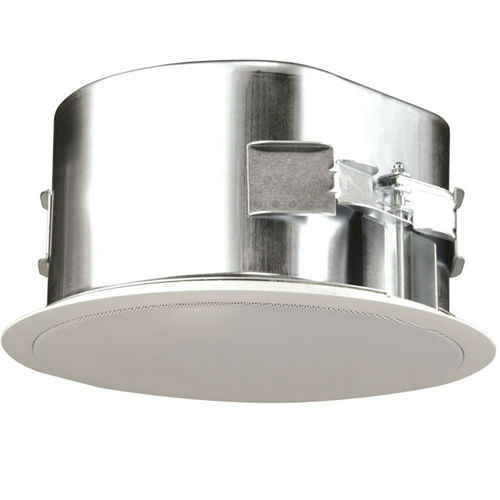

CM62-BGM 6.5" COAXIAL IN-CEILING BACKGROUND MUSIC SPEAKER
- One 6.5 inch (165 mm) polypropylene woofer with rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter.
- BeamRing™ technology for mid-range clarity and smooth off axis performance
- Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation.
- Tuned port on baffle for added musicality and bass response down to 64 Hz (-10 dB).
- Reduced amplification costs and maxi¬mum efficiency of 85.0 dB sensitivity, 16 ohm impedance.
- Incorporates a painted steel grille for last¬ing durability.
- Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm).
- UL 1480 and 2043 pending.
- High-quality black or white painted fin¬ish. Custom colors available.
- Included accessories: Tile bridge, UL listed 0.5 inch conduit clamp, paint shield.
- Optional accessories: Color-coded (green)pre-construction bracket (AC-CM6-8EZ-PCB).
|
| GrillePainting |
Data/pr_pdf/GeneralGrillePainting_Instructions-Stube.pdf |
| Low Frequency(-10 dB) |
60 Hz - 22 kHz |
| Sensitivity |
88.0 dB |
| Power Capacity RMS |
50 W |
| Max SPL dB @ 1 M |
105.0 dB |
| Nominal Impedance |
16 ohm |
| Tweeter |
1.0 in. Silk |
| Woofer |
6.5 in. Poly |
| Connections |
Four position ceramic terminal strip |
| Visible Height |
8.6 mm (0.34 in.) |
| Visible Diameter |
298.5 mm (11.75 in) |
| Backcan Height |
146.1 mm (5.75 in.) |
| Backcan Width |
245.6 mm (9.67 in) |
| Weight |
3.6 kg (8.0 lbs.) |
| Shipping Weight |
4.1 kg (9.0 lbs.) |
| Colors |
Black or white |
