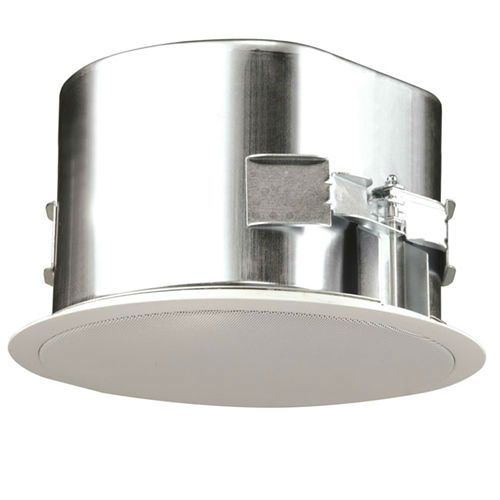

CM82-BGM 8.0" COAXIAL IN-CEILING BACKGROUND MUSIC SPEAKER
- One 8.0 inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0 inch (25 mm) silk dome tweeter.
- BeamRing™ technology for mid-range clarity and smooth off axis performance
- Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation.
- Tuned port on baffle for added musicality and bass response down to 55 Hz (-10 dB).
- Reduced amplification costs and maxi¬mum efficiency of 86.0 dB sensitivity, 16 ohm impedance.
- Incorporates a painted steel grille for last¬ing durability.
- Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm).
- UL 1480 and 2043 pending.
- High-quality black or white painted fin¬ish. Custom colors available.
- Included accessories: Tile bridge, UL listed 0.5-inch conduit clamp, paint shield.
- Optional accessories: Color-coded (green) pre-construction bracket (AC-CM6-8EZ-PCB).
|
| GrillePainting |
Data/pr_pdf/GeneralGrillePainting_Instructions-Stube.pdf |
| Low Frequency(-10 dB) |
55 Hz - 22 kHz |
| Sensitivity |
89.0 dB |
| Power Capacity RMS |
64 W |
| Max SPL dB @ 1 M |
107.0 dB |
| Nominal Impedance |
16 ohm |
| Tweeter |
1.0 in. Silk |
| Connections |
Four position ceramic terminal strip |
| Visible Height |
8.6 mm (0.34 in.) |
| Visible Diameter |
298.5 mm (11.75 in) |
| Backcan Height |
203.2 mm (8.0 in.) |
| Backcan Width |
245.6 mm (9.67 in) |
| Weight |
4.1 kg (9.0 lbs.) |
| Shipping Weight |
4.5 kg (10.0 lbs.) |
| Colors |
Black or white |
