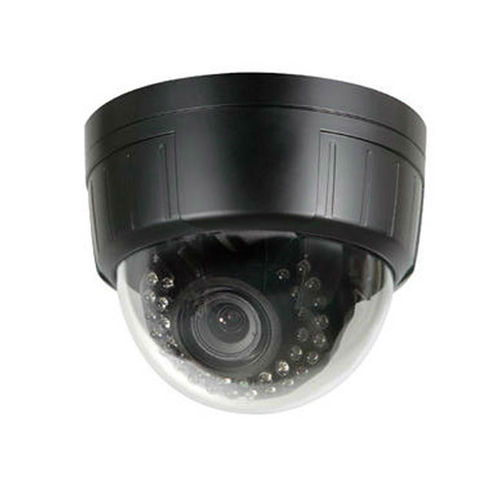

Intense-IR Series Color Day/Night Indoor Dome Camera, 2.8-12mm lens, Black Housing
Details
• 2.8-12mm auto iris varifocal lens
• 1/3” Sony Super HAD II™ CCD
• 3DNR (sense-up) - sharp image under ultra low light level
• Intense-IR function - no saturation image, vivid image
• Defect function - elimination of white spots
• HSBLC (High Light Suppression BLC)
• Privacy zone
• ICR - removable IR cut filter
• Convenient On-Screen Display (OSD) function controls
• 12VDC / 24VAC dual voltage operation
• 5 year warranty
Specifications
Image Sensor....................... 1/3” Sony Super HAD II™ CCD
Resolution............................ 600 TV lines
Minimum Illumination........... 0.000006 lux (IR LEDs on)
Total Pixels........................... 811 (H) x 508 (V)
Effective Pixels..................... 768 (H) x 494 (V)
Number of LEDs...................33
IR Range.............................. Up To 65 ft. (depending on scene reflection)
IR LED Wavelength.............. 850nm
White Balance...................... ATW / AWB / Manual / AWC ‒ Set
AGC...................................... High / Middle / Low / Off
S/N Ratio.............................. 52dB (AGC off, weight on)
Backlight Compensation...... BLC / HSBLC / Off
Electronic Shutter Speed..... Auto (1/50, 1/60 sec. ‒ 1/100,000 sec.)
OSD...................................... Built-In
3DNR.................................... On / Off (0-100 levels adjustable)
DWDR.................................. Indoor / Outdoor / Off
Sharpness............................ 0-31’ (level adjustable)
Privacy.................................. On / Off (8 zones)
Scanning System................. 2:1 interlace
Synchronization.................... Internal / Line-Lock
Motion Detection.................. On / Off (4 zones)
Sense-Up............................. Off / Auto (selectable limit x2 - x256)
Mirror.................................... Off / Mirror / V-Rev / Rotate
Freeze.................................. On / Off
Day/Night............................. Color / BW / Auto / EXT
Digital Zoom:........................ On (32x) / Off
Defect Compensation........... Auto: 128 points / Manual: 4 points
Power Supply....................... 12VDC / 24VAC dual voltage operation
(power supply not included)
Power Consumption............. 12VDC, 250mA (CDS off)
12VDC, 700mA (CDS on)
24VAC, 100mA (CDS off)
24VAC, 250mA (CDS on)
Operating Temperature/
Humidity............................... 14˚ F ‒ 122˚ F / RH 95% max.
Storage Temperature/
Humidity............................... -4˚ F ‒ 140˚ F / RH 95% max.
Dimensions.......................... 4” (H) x 4.8” (Dia.)
Weight.................................. 1.2 lbs.
