TOTAL CONTROL TKP-100 KEYPAD IN-WALL KEYPAD

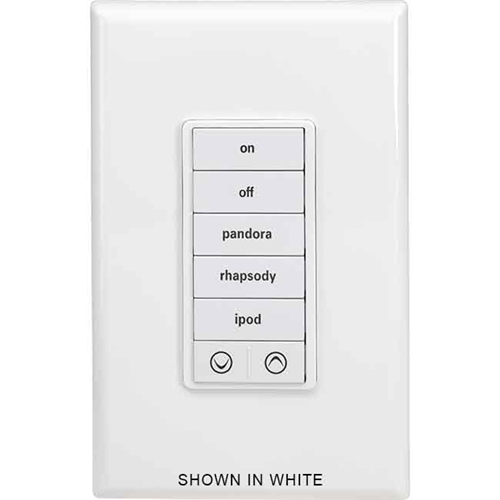

(LIGHT ALMOND) Shown in White

More than a conventional volume control, TKP-100 provides power, source selection and sophisticated, contemporary design in addition to volume control. Installed easily in a standard single-gang electrical box and powered via one Cat5 cable, this seven button keypad includes both URC Music and URC Lighting default button sets. It practically programs itself when default button sets are used. For special applications, customized buttons are available. For the benchmark in convenient operation, all buttons are backlit and provide status feedback.

• Seven (7) customizable, backlit buttons with status feedback (for default sets and auto programmed features)
• Includes both URC Music and URC Lighting default button sets
• Automatic programming when default button sets are used
• Fits standard single-gang electrical box
• PoE (Power over Ethernet)
• Cover plates are not included (accepts standard Decora® plates in a variety of colors)

• Macro Capability: 7 programmable macro buttons
• Network: One (1) 10/100 Ethernet port (Indicator 2LED, PoE)
• Indicator: 7 customizable buttons (orange / white feedback in most cases)
• Power: PoE
• Power Consumption: 4W
• Size: 1.8” x 4.1” x 1.3” (W x H x D)
• Weight: 0.18 lbs
