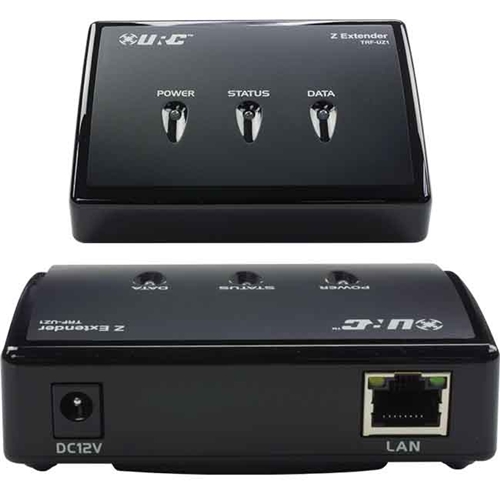

TOTAL CONTROL TRF-UZ1 ANTENNA EXTERNAL 2.4GHZ FOR MRX-10

Relocates the “initial hop” for URC's 2.4GHz Mesh Network. When using the TRF-UZ1, the MRX-10 will no longer broadcast a 2.4GHz RF range. In order to extend the range of your system, you will need to use ZR-1N and ZR-2 devices, which can “hop” off of the TRF-UZ1 OR the MRX-10.

• Microprocessor: ARM 32-bit Cortex-M3 (120MHz)

• Power Supply: 12VDC1A

• RAM: 128Mbyte MobileDDR
• NAND: 128Mbyte
• FLASH: 768Kbytes
• RF Range (radio frequency): 50 to 100 feet, depending upon the environment
• RF Frequency: 2.405~2.480GHz
• Weight: 3.058 oz
• Size: 3.74”W X 2.7”H X 1.1”D
• Power: 12VDC, 1A

The MRX-4SEN communicates using URC’s 2.4GHz RF. The MRX-20 & CP-1 (MRX-8) requires the use of the TRF-UZ1/AZ-1 RF antenna to communicate with the Master Controller. URC features six different sensors for use with the MRX-4SEN.
