IP / Analog Audio Bridge
AT-OMNI-232
OmniStream™ 232
- Dual-channel Dante audio bridge
- Two balanced mic/line inputs
- Selectable 24 volt phantom power for each input
- Two balanced line level outputs
- Selectable input and output gain settings
- Local or PoE (Power over Ethernet) powering
Product Overview

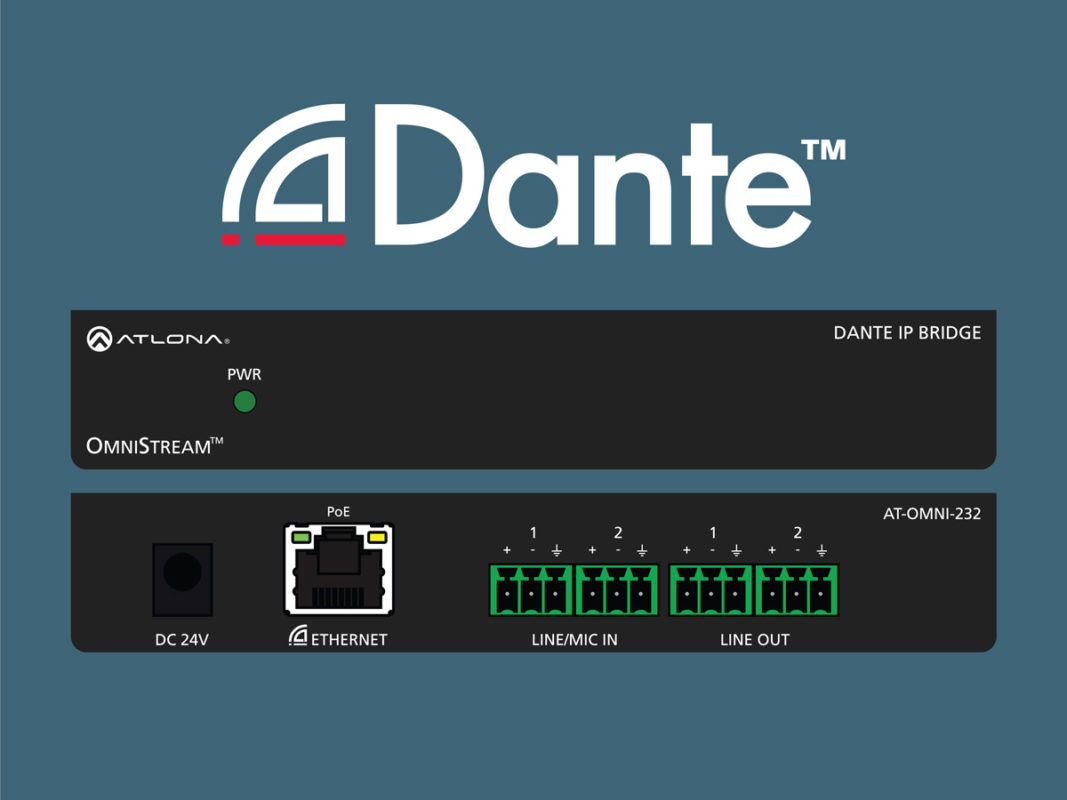

OmniStream 232 IP / Analog Audio Bridge
Simplify audio over IP with Dante.
The OmniStream 232 lets you integrate microphones and other sources using Audinate Dante, the AV industry’s most popular audio over IP technology. You can also incorporate a growing number of professional audio devices with Dante built-in.

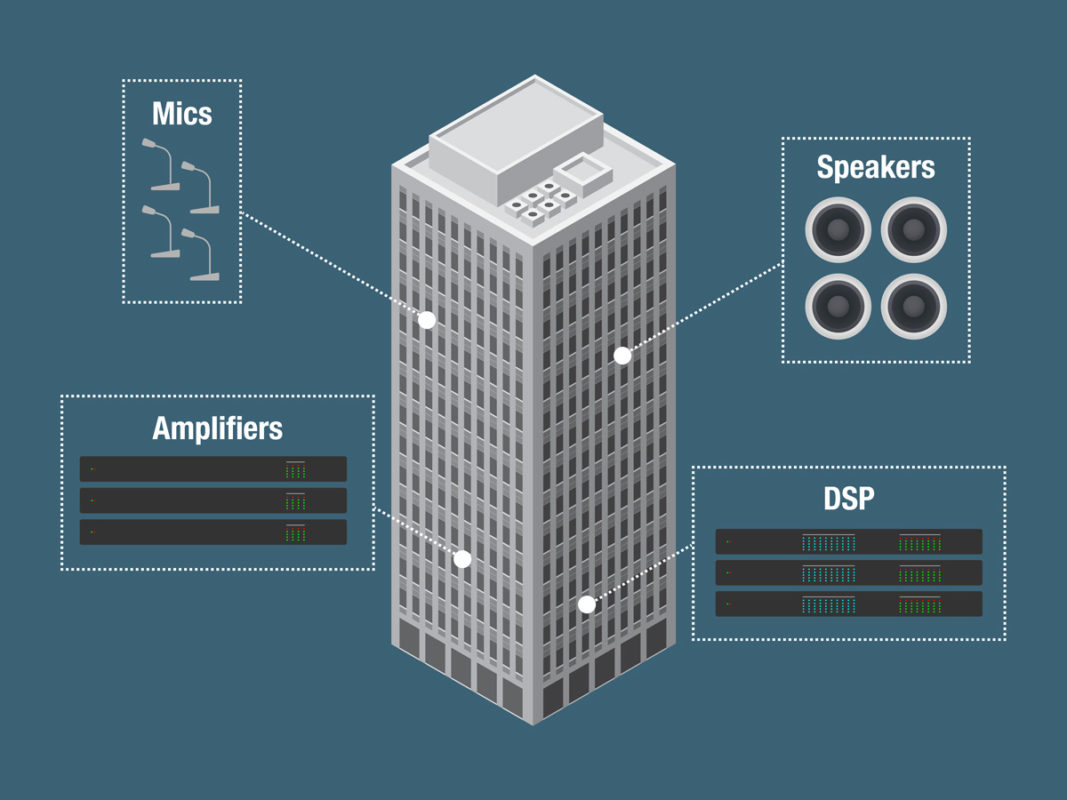

Ideal for facility audio distribution systems.
The OmniStream 232 is the ideal bridge into facility-wide Dante audio systems for conferencing, presentations, paging, and background music. When paired with an OmniStream VC-2 decoder, you can bring in de-embedded audio from an HDMI source, or embed Dante audio for a display.

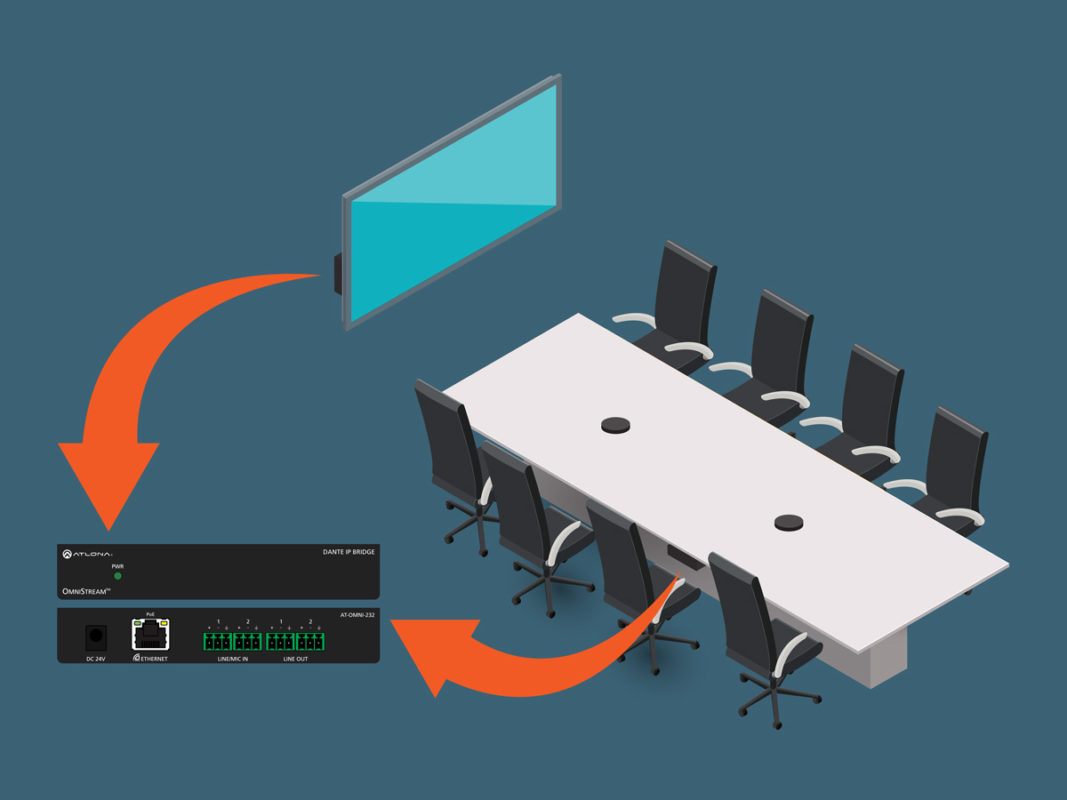

Compact and discreet.
The small, slim enclosure makes this device perfect for installation below a conferencing table, in a rack or credenza, or behind a display. You can place the OmniStream 232 anywhere audio integration may be needed.
| Audio |
| In/Out |
Dante two channel |
| Input Level |
+4 dBu nominal, +24 dBu no clipping |
| Output level |
+4 dBu nominal, +24 dBu no clipping |
| Frequency Response |
20 Hz to 20 kHz ±5dB |
| Input Impedance |
>1.8 kΩ |
| Phantom Power |
+24V |
| Noise |
THD+N: <0.015% from 20 Hz to 20 kHz @ 45 dB gain
SNR: >90 dB unweighted |
| Distance |
| Max distance dependent on Network configuration |
| Temperature |
| Operating |
0°C to 40°C |
32°F to 104°F |
| Storage |
-20°C to 60°C |
-4°F to 140°F |
| Humidity |
20 to 90% non-condensing |
| Power |
| Consumption |
3.1W |
| Supply (optional) |
Input: AC 24VAC 50/60Hz
Output: DC 24V 2.5A |
| SKU |
AT-PS-24250-L |
| Dimension |
| H x W x D |
27 x 164 x 88 (mm) |
1.06 x 6.46 x 3.46 (inch) |
| Weight |
| Unit |
0.37kg |
0.82lbs |
| Certification |
| Power Supply |
CE, FCC, cULus, RoHS, CCC, RCM |
| Product |
CE, FCC |
